Protecting the Mail Server on the Intranet

Faced Problems

As shown in Figure 1, an enterprise deploys the FW as a gateway to connect the intranet to the Internet.

The enterprise provides a mail server to send and receive mails. The mail server often experiences the intrusion and attacks from the Internet, affecting normal service access.

Figure 1 Protecting the mail server on the intranet

Solution

With the intrusion prevention function, the FW detects and blocks various intrusion behavior to secure the network.

The FW provides an intrusion prevention signature database that contains the signatures of known intrusion behavior. The FW matches a behavior with signatures in the intrusion prevention signature database. If a match is found, the behavior is considered as an intrusion behavior.

To ensure the accuracy of the intrusion detection result, you are advised to update the intrusion prevention signature database every week.

Reference the intrusion prevention profile in the security policy that permits Internet users to access the mail server to detect intrusion behavior on the network.

1. Log in to the web UI of the FW as the administrator.

2. Choose Policy > Security Policy > Security Policy.

3. Click Add Security Policy. Configure matching conditions for the security policy as required and reference intrusion prevention profile mail_server in the security policy.

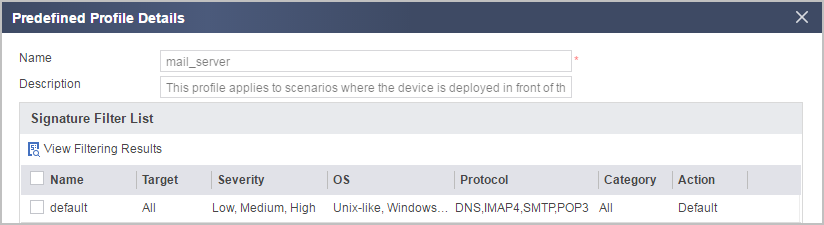

   The FW provides several intrusion prevention profiles for different application scenarios by default. In this example, intrusion prevention profile mail_server is used to protect the mail server.



   Set security policy parameters as follows:

   Name	policy1
   Source Zone	untrust
   Destination Zone	dmz
   Destination Address/Region	192.168.1.200/255.255.255.255
   Action	permit
   Content Security
   Intrusion Prevention	mail_server

4. Click OK.

Verification

Exploit the known mail server vulnerability to launch the intrusion to the mail server from the Internet. The FW blocks the intrusion.

Choose Monitor > Log > Threat Log. You can view the intrusion logs generated by the FW.

Configuration Scripts

The configuration script related to the example is as follows:

#
security-policy
 rule name policy1
  source-zone untrust
  destination-zone dmz
  destination-address 192.168.1.200 mask 255.255.255.255
  profile ips mail_server
  action permit
#
