Blocking the Use of the QQ Client

Faced Problems

As shown in Figure 1, an enterprise deploys the FW as a gateway to connect the intranet to the Internet.

Intranet users use the QQ client for chatting, affecting the working efficiency.

Figure 1 Blocking the use of the QQ client

Solution

With the application identification function, the FW can identify QQ traffic. Set the application to the QQ client and the action to deny in the security policy to disable intranet users from using the QQ client.

1. Log in to the web UI of the FW as the administrator.

2. Choose Policy > Security Policy > Security Policy.

3. Click Add, select Add Security Policy. Set matching conditions for the security policy as required and set the action to deny.

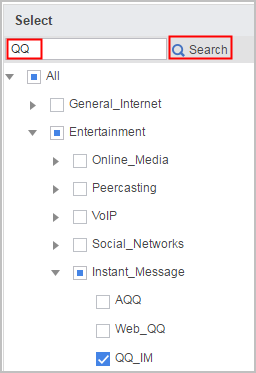

   When setting the application matching condition for the security policy, use keyword QQ to rapidly locate and select the application.



   Set security policy parameters as follows:

   Name	policy1
   Source Zone	trust
   Destination Zone	untrust
   Source Address/Region	192.168.0.0/255.255.255.0
   Application	QQ_IM
   Action	Deny

4. Click OK.

Verification

Intranet users cannot use the QQ client for chatting.

Configuration Scripts

The configuration script related to the example is as follows:

#
security-policy
 rule name policy1
  source-zone trust
  destination-zone untrust
  application app QQ_IM
  action deny
#
