Powering On or Off the USG6510E, USG6510E-POE, USG6530E

This section describes how to power on or off the USG6510E, USG6510E-POE, USG6530E. To ensure the normal start and security of the USG6510E, USG6510E-POE, USG6530E, strictly follow the operation guide to power on or off the USG6510E, USG6510E-POE, USG6530E.

Context

Before you power on the USG, ensure that:

The power cable and PGND cable are properly connected.
The power switch in the equipment room is easy to locate so that you can power off devices in the case of accidents.

Procedure

Power on the USG.
The USG starts after the switch of the power supply device is turned on.

You can identify the USG status based on indicators on the front panel. Indicators shown in Figure 1 indicate that the USG is running normally.

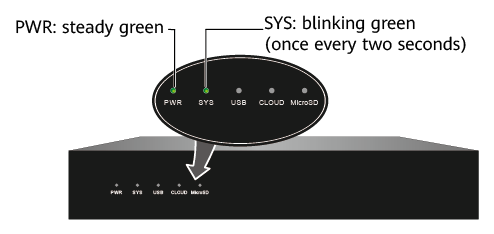

Figure 1 Indicators when the USG runs normally
Power off the USG.

Before powering off the USG, ensure that configuration data is saved. Otherwise, the configuration data may be lost.

If the USG will be administratively shut down for a long time, turn off the power switch. After powering off the USG, set it aside properly according to storage requirements.

Follow-up Procedure

After the USG is powered on, you can log in to the configuration page for management and maintenance. For details, refer to the Configuration Guide.
