Mounting a Device in a Cabinet
The USG6510E, USG6510E-POE, USG6530E can be mounted in a 19-inch standard cabinet using mounting ears.
Precautions
Before installing the USG, check the following items:
- Before unpacking the carton, ensure that the packing carton is intact and not damaged or soaked. Stop unpacking if the USG is rusted or soggy. Then, investigate causes and contact the supplier.
- The cabinet is stable.
- The position for the USG in the cabinet is well arranged.
- Ensure that the USG is 1 U of clearance from any devices above and below and 150 mm of clearance from any devices on the right or left.
- The device to be installed is staged near the cabinet for convenience.
You can place either end of the USG chassis towards the front door of the cabinet. In this manual, the front panel of the USG is towards the front door of the cabinet.
Tools and Accessories
- Phillips screwdriver
- Floating nuts and matching screws
- Floating mounting bar
- Mounting ears and matching screw (purchased separately, BOM numbers: 21240477)
- Holding plate and matching screw (purchased separately, BOM numbers: 21243646)
Procedure
- Install mounting ears on the chassis.

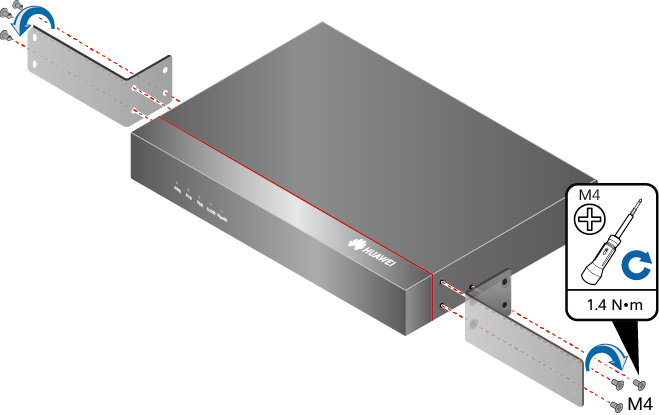

Use a Phillips screwdriver to fix the mounting ears to both sides of the chassis with M4 screws, as shown in Figure 1.
If the tray installation mode is used, skip this step.
- Install floating nuts.

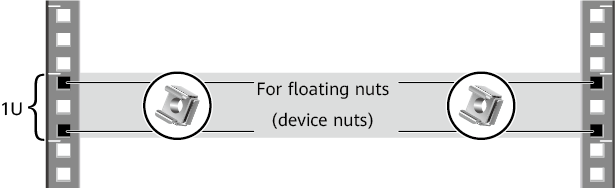

Figure 2 illustrates the positions of floating nuts.
Use M6 screws to fix the floating nuts at the positions specified in Figure 2, as shown in Figure 3.
- (Optional) Install the device to a tray. For details, see the installation guide delivered with the tray.
- Mount the USG in the cabinet.

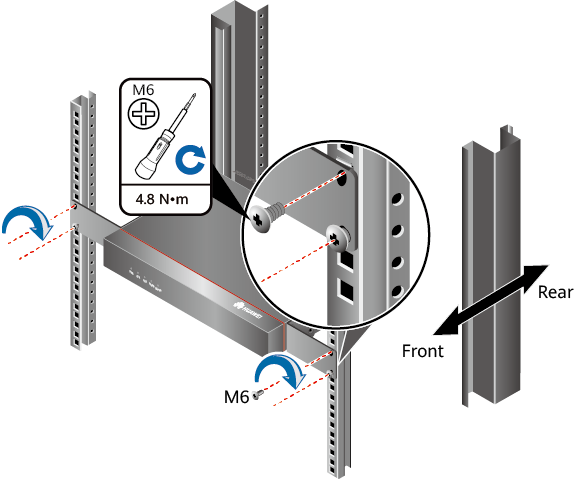

- Use a Phillips screwdriver to install M6 screws and fix the USG into the cabinet through mounting ears, as shown in Figure 4.
