Mounting a Device on a Workbench

If you do not have a cabinet, you can mount the USG6510E, USG6510E-POE, USG6530E on a workbench.

Precautions

Before unpacking the carton, ensure that the packing carton is intact and not damaged or soaked. Stop unpacking if the USG is rusted or soggy. Then, investigate causes and contact the supplier.

The workbench must be:

Reliably grounded.
Clean, firm, and securely installed.

Accessories

Four rubber feet

Procedure

Fix the rubber feet to the round notches at the bottom of the USG.

Install foot pads at the bottom of the USG to ensure smooth contact between the USG and the workbench and avoid friction between the surface of the USG and the workbench.
Place the USG on the workbench.

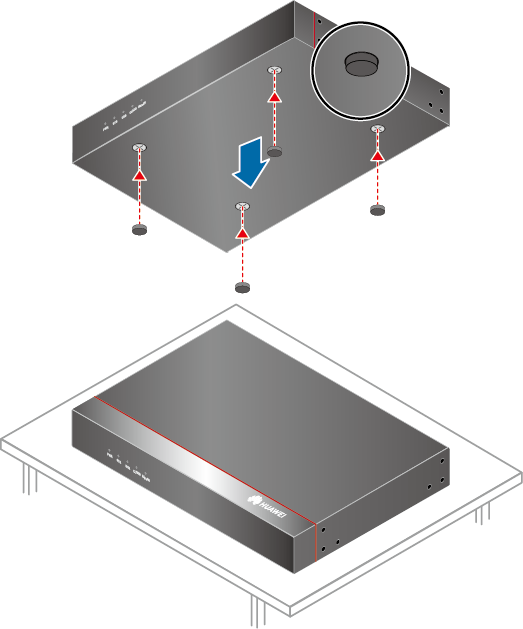

Figure 1 Placing the USG with rubber feet on a workbench

Follow-up Procedure

Verify the following after the installation:

The USG is securely placed on the workbench.
No object blocks the exhaust of the USG, and there is at least 10 cm of distance between the USG and surrounding devices.
There are no heavy objects on the USG.
