Web: Example for Enabling Remote Users to Access Enterprise Networks over SSL VPN Tunnels Using SecoClient

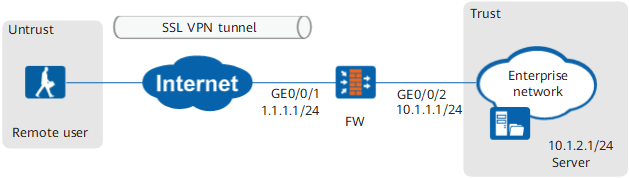

Procedure

• Configure the FW.
  1. Set interface IP addresses and assign the interfaces to security zones.
     1. Choose Network > Interface.

     2. Click of GE0/0/1 and set the parameters as follows:

        Zone	Untrust
        IPv4
        IP Address	1.1.1.1/24
        Access Management	HTTPS, Ping

     3. Click OK.

     4. Repeat the preceding steps to configure GE0/0/2.

        Zone	Trust
        IPv4
        IP Address	10.1.1.1/24
        Access Management	HTTPS, Ping

  2. Configure the security policy.

     1. Choose Policy > Security Policy > Security Policy.

     2. Click Add and configure a security policy for the Untrust -> Local interzone as follows to allow the mobile user to log in to the SSL VPN virtual gateway:

        Name	sslvpn_ul
        Source Zone	Untrust
        Destination Zone	Local
        Service	https, udp NOTE: If the HTTPS port number is changed, use the new port number when creating the security policy.
        Action	Permit

     3. Click OK.

     4. Repeat the preceding steps to configure Untrust -> Trust interzone policies.

        Name	sslvpn_ut
        Source Zone	Untrust
        Destination Zone	Trust
        Source Address/Region	172.16.1.0/24
        Destination Address/Region	10.1.2.0/24
        Action	Permit

  3. Configure a route to the Internet.

     In the example, the next-hop IP address from FW to the Internet is 1.1.1.2.

     1. Choose Network > Route > Static Route.

     2. Click Add and set parameters as follows:

        Destination Address/Mask	0.0.0.0/0.0.0.0
        Next Hop	1.1.1.2

     3. Click OK.

  4. Create a user group and a user.
     1. Choose Object > User > default.

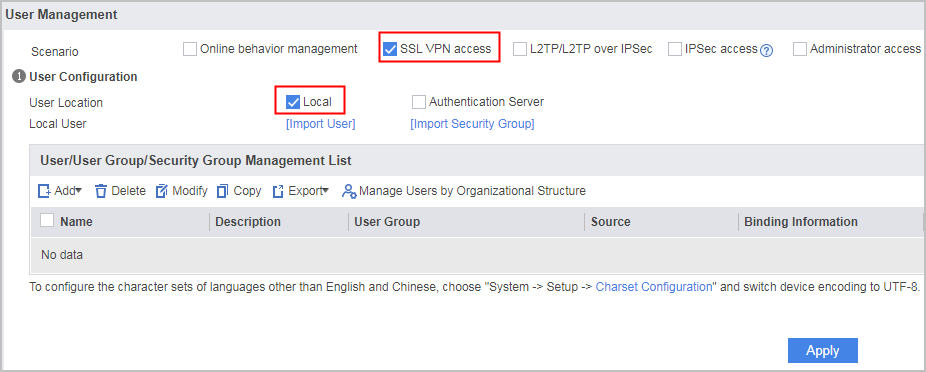

     2. Select SSL VPN access for Scenario and Local for User Location.

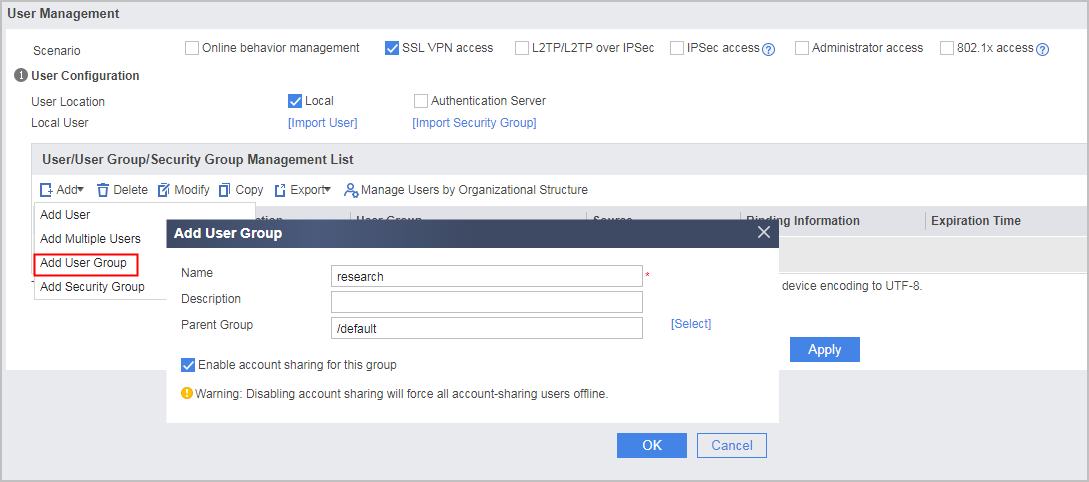

     3. Click Add, select Add User Group, and set the user group name to research.



     4. Click OK.

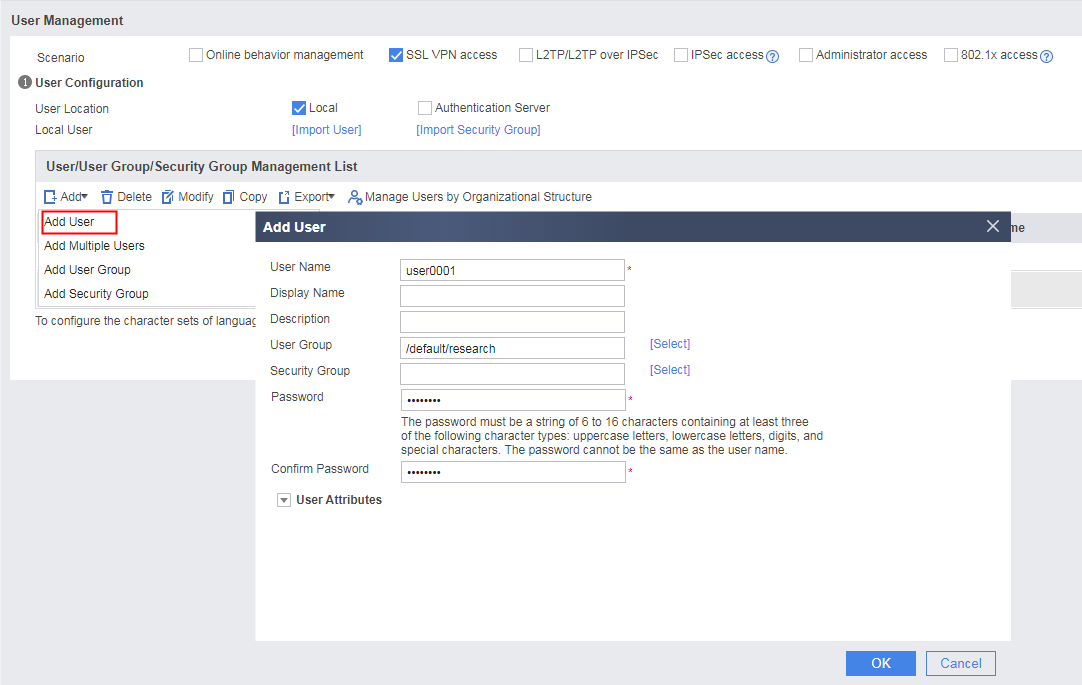

     5. Click Add, select Add a User, set the user name to user0001, and set the password to Password@123.



     6. Click OK.
     7. Click Apply.

  5. Create and configure an SSL VPN virtual gateway.
     1. Configure an SSL VPN virtual gateway.

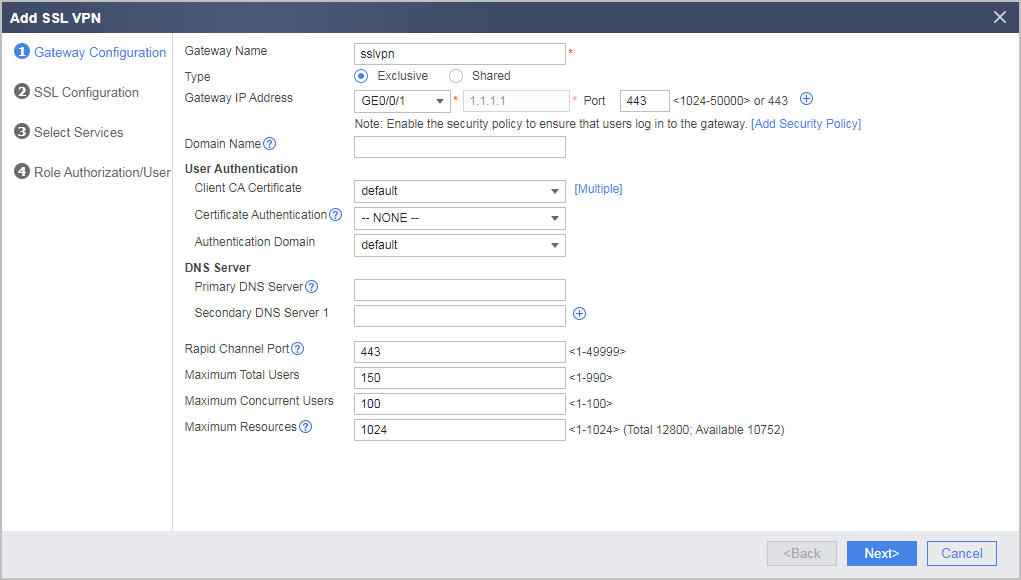

        Set parameters, including the gateway IP address, user authentication mode, and maximum number of concurrent users, and click Next.



     2. Configure the SSL version and encryption suite. Then click Next.

        In the example, use the default algorithms.

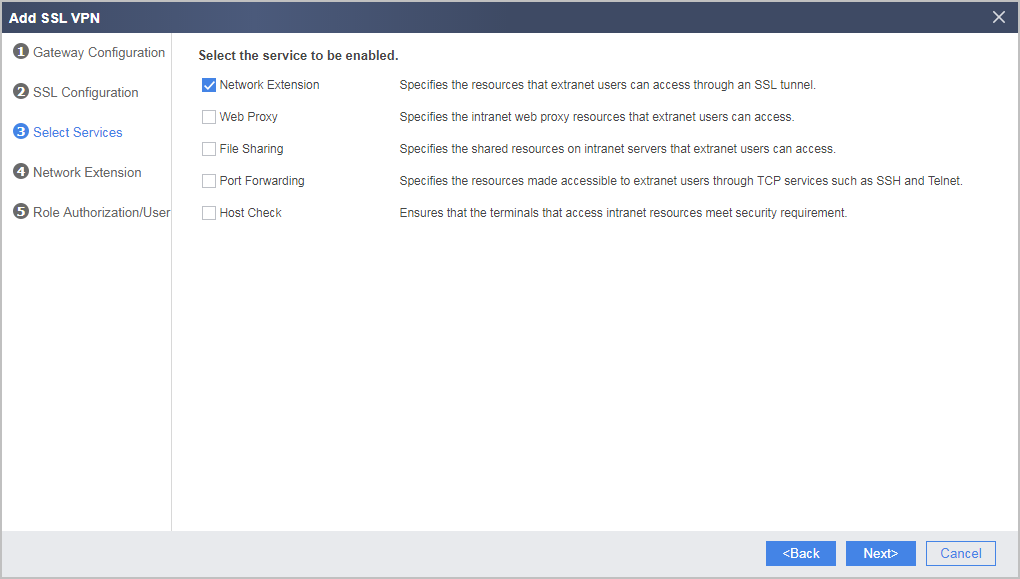

     3. Select services to be enabled and click Next.

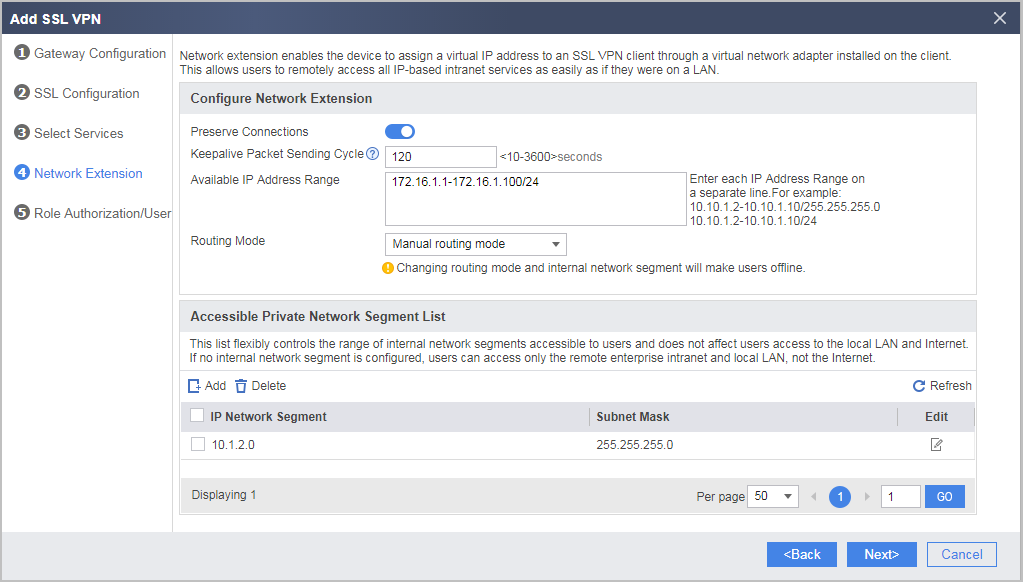

     4. Configure network extension and click Next.

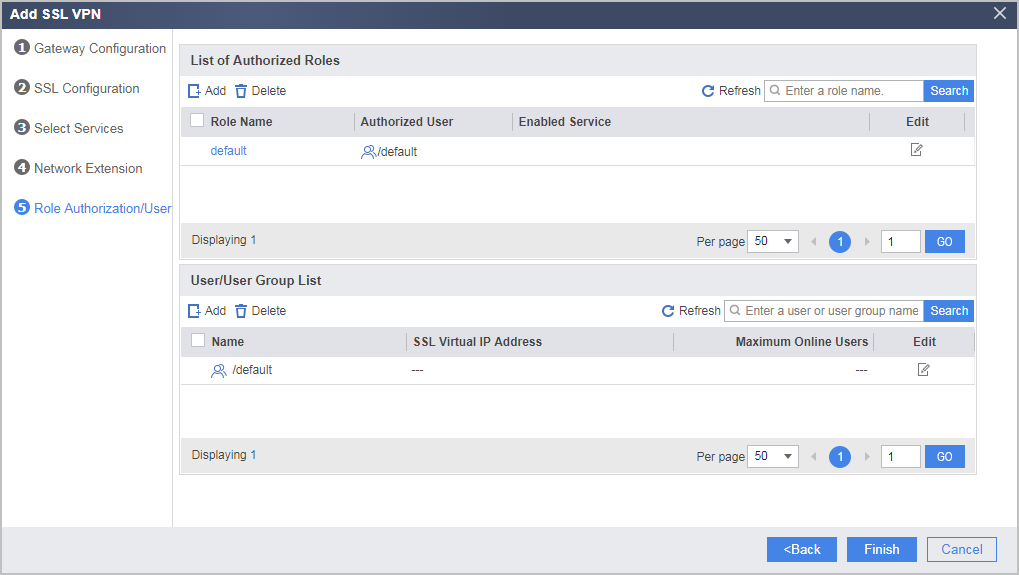

     5. Configure SSL VPN role authorization/users.

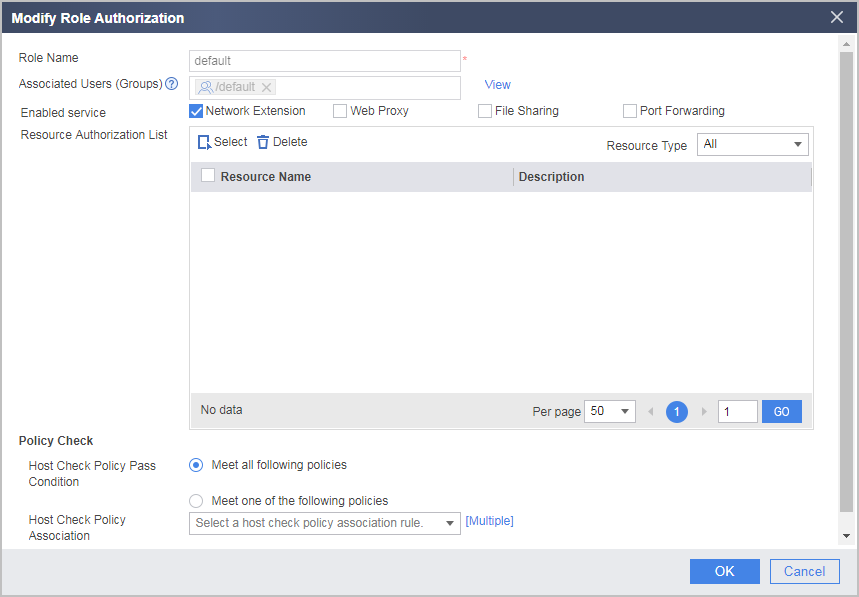

        Click of default in List of Authorized Roles, select Network Extension, and click OK.



     6. Return to the role authorization/user page and click Finish.

• Configure the SecoClient at the mobile user side.


  The SecoClient that supports this version has no longer evolved and cannot be downloaded from the Huawei Support website. The downloaded SecoClient can still be used. SecoClient configuration examples and common configuration problems are retained in the document. When users need to use the SSL VPN function through client access, see : VPN Client Download Description.

  1. Open the SecoClient.

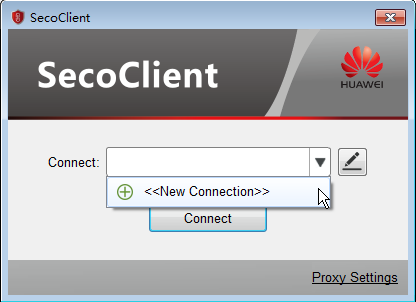

     Select New Connection from the Connect drop-down list.



  2. Set SSL VPN connection parameter values.

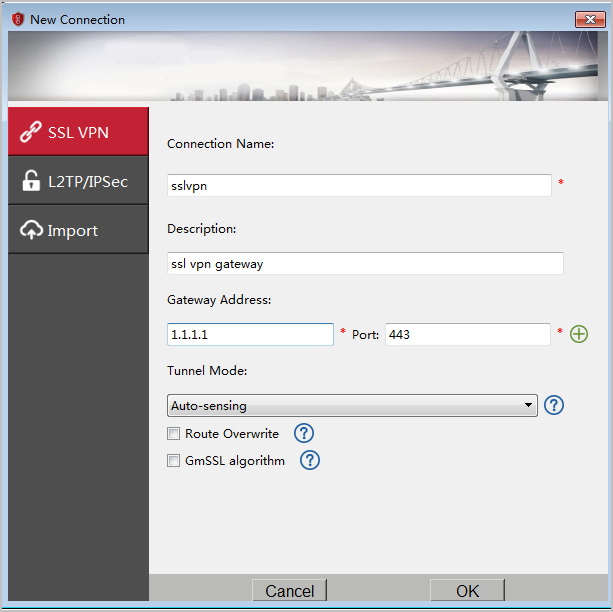

     In the New Connection dialog box, select SSL VPN from the left navigation tree, set connection parameter values, and click OK.



  3. Log in to the SSL VPN virtual gateway.

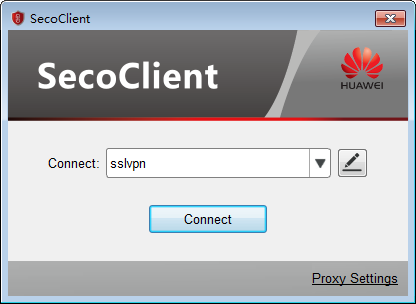

     1. Select the created SSL VPN connection from the Connect drop-down list and click Connect.

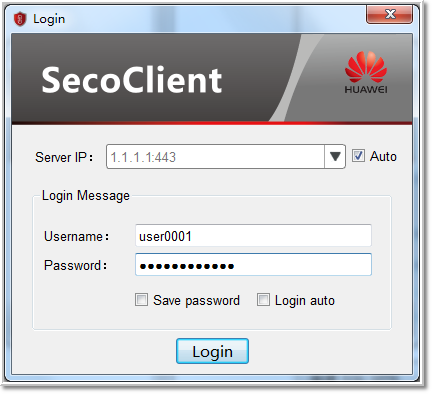

     2. On the login page, enter the user name and password.

        If there are multiple virtual gateways and Auto is selected, the system automatically selects the virtual gateway with the highest response speed to establish SSL VPN tunnels. If there is only one gateway, leave Auto deselected.

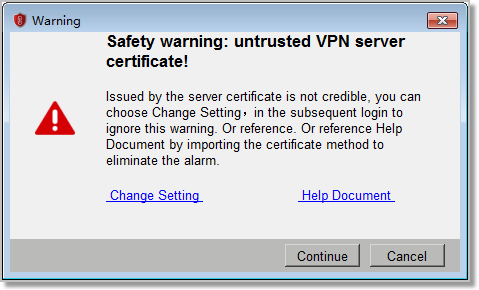

        During tunnel establishment, the SecoClient verifies the certificate of the VPN gateway. If the verification fails, the following alarm is displayed. If you confirm that the VPN gateway to be connected is reliable, click Continue. If the VPN gateway is suspect, click Cancel and see How Can I Clear the Alarm "Your certificate of calibration is illegal, continue to log in?".



     3. Click Login to initiate a VPN connection.

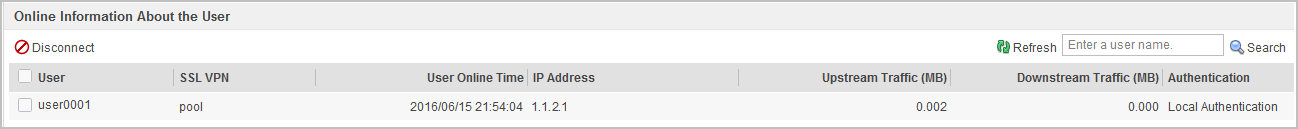

        When the VPN access succeeds, a prompt is displayed at the lower right corner of the screen.



        Using the connection, the mobile user can access intranet resources as users in the enterprise intranet.
