Example for Configuring ARP Automatic Scanning and Fixed ARP

This section describes how to configure ARP automatic scanning and fixed ARP. The configuration enables a device to rapidly generate dynamic ARP entries and convert the dynamic ARP entries to static ARP entries. This process ensures reliable and secure network operations.

Networking Requirements

On a small-sized LAN, a network administrator configures static ARP entries on a gateway to ensure network communications security. However, once a device MAC address is changed, the network administrator has to reconfigure a static ARP entry on the gateway, which increases network operation and maintenance costs.

If the network adapters of HostA, HostB, HostC, and HostD are replaced, the existing static ARP entries for these devices on the PE become invalid on the network shown in Figure 1. To solve this problem and ensure network security, you can configure ARP automatic scanning and fixed ARP on the PE. The two functions enable the PE to rapidly learn the MAC address of each host, generate dynamic ARP entries, and convert the dynamic ARP entries to static ARP entries.

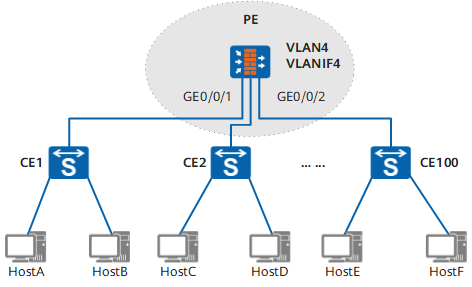

Figure 1 Networking for ARP automatic scanning and fixed ARP configurations

Configuration Roadmap

The configuration roadmap is as follows:

Configure a VLAN, create a VLANIF interface, and configure an IP address for the VLANIF interface.
Configure ARP automatic scanning on the VLANIF interface.
Configure fixed ARP on the VLANIF interface.

Data Preparation

To complete the configuration, you need the following data:

VLAN ID (4)
Types and numbers of the interfaces (GE0/0/1 and GE0/0/2) that join the VLAN
IP address (10.1.1.1/24) of the VLANIF interface
IP addresses of HostA (10.1.1.2/24), HostB (10.1.1.3/24), HostC (10.1.1.4/24), and HostD (10.1.1.5/24)

Procedure

Configure an IP address for each host.
# Assign 10.1.1.2/24 to HostA.

# Assign 10.1.1.3/24 to HostB.

# Assign 10.1.1.4/24 to HostC.

# Assign 10.1.1.5/24 to HostD.

Configure a VLAN and create a VLANIF interface.

<FW> system-view
[FW] sysname PE
[PE] interface GigabitEthernet 0/0/1
[PE-GigabitEthernet 0/0/1] portswitch
[PE-GigabitEthernet 0/0/1] quit
[PE] interface GigabitEthernet 0/0/2
[PE-GigabitEthernet 0/0/2] portswitch
[PE-GigabitEthernet 0/0/2] quit
[PE] vlan 4
[PE-vlan4] port GigabitEthernet 0/0/1 to 1/0/2
[PE-vlan4] quit
[PE] interface vlanif 4
[PE-Vlanif4] ip address 10.1.1.1 255.255.255.0
[PE-Vlanif4] quit

Run the display arp all command to view the ARP entries on the PE. The ARP entries on the VLANIF interface are displayed only.

[PE] display arp all
IP ADDRESS      MAC ADDRESS     EXPIRE(M) TYPE        INTERFACE   VPN-INSTANCE
                                          VLAN
------------------------------------------------------------------------------
10.1.1.1        0018-****-04c3            I -         Vlanif4
------------------------------------------------------------------------------
Total:1        Dynamic:0      Static:0    Interface:1

Configure ARP automatic scanning.

[PE] interface vlanif 4
[PE-Vlanif4] arp scan 10.1.1.2 to 10.1.1.5
[PE-Vlanif4] quit

Run the display arp all command to view the ARP entries on the PE. The ARP entries of HostA, HostB, HostC, and HostD are displayed.

[PE] display arp all
IP ADDRESS      MAC ADDRESS     EXPIRE(M) TYPE        INTERFACE   VPN-INSTANCE
                                          VLAN
------------------------------------------------------------------------------
10.1.1.1        1051-****-e079            I -         Vlanif4
10.1.1.2        1051-****-e07b   20        D-0         GigabitEthernet 0/0/1
                                             4/-
10.1.1.3        1051-****-e07d   20        D-0         GigabitEthernet 0/0/1
                                             4/-
10.1.1.4        1051-****-e081   20        D-0         GigabitEthernet 0/0/2
                                             4/-
10.1.1.5        1051-****-e083   20        D-0         GigabitEthernet 0/0/2
                                             4/-
------------------------------------------------------------------------------
Total:5        Dynamic:4      Static:0    Interface:1

Configure fixed ARP.

[PE] interface vlanif 4
[PE-Vlanif4] arp fixup
[PE-Vlanif4] quit

Run the display arp all command to view the ARP entries on the PE. The dynamic ARP entries of HostA, HostB, HostC, and HostD have been converted to static ARP entries.

[PE] display arp all
IP ADDRESS      MAC ADDRESS     EXPIRE(M) TYPE        INTERFACE   VPN-INSTANCE
                                          VLAN
------------------------------------------------------------------------------
10.1.1.1        0018-****-04c3            I -         Vlanif4
10.1.1.2        0018-****-04c3  19        S-0         GigabitEthernet 0/0/1
                                             4/-
10.1.1.3        00e0-****-1015  19        S-0         GigabitEthernet 0/0/1
                                             4/-
10.1.1.4        00e0-****-1015  19        S-0         GigabitEthernet 0/0/2
                                             4/-
10.1.1.5        00e0-****-1015  19        S-0         GigabitEthernet 0/0/2
                                             4/-
------------------------------------------------------------------------------
Total:5        Dynamic:0      Static:4    Interface:1

Configuration Files

Configuration file of PE

#
 sysname PE
#
 vlan batch 4
#
interface Vlanif4
 ip address 10.1.1.1 255.255.255.0
#
interface GigabitEthernet 0/0/1
 portswitch
 undo shutdown
 port hybrid pvid vlan 4
 undo port hybrid vlan 1
 port hybrid untagged vlan 4
#
interface GigabitEthernet 0/0/2
 portswitch
 undo shutdown
 port hybrid pvid vlan 4
 undo port hybrid vlan 1
 port hybrid untagged vlan 4
#
