Web: Example for Configuring ShortCut DSVPN (Route Injection)

Networking Requirements

A large enterprise has the headquarters (Hub) and multiple branches (Spoke1 and Spoke2 are used as an example), which locate in different places. The branches use dynamic addresses to connect to the Internet. The enterprise requires that the branches establish a VPN tunnel between each other so that their users can communicate directly over the tunnel. The subnet environments of the headquarters and branches often change, and there are many branch subnets.

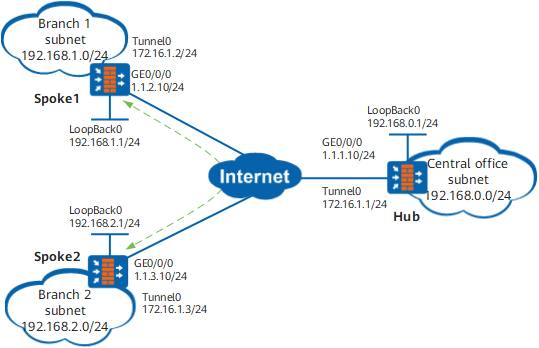

Figure 1 Networking diagram for configuringShortCut DSVPN

Configuration Roadmap

The configuration roadmap is as follows:

  1. Configure DSVPN to interconnect the branches through VPN tunnels. This is because the branches use dynamic addresses to connect to the Internet and do no know each other's public address.

  2. Use shortcut DSVPN. This is because there are many branches.

  3. Use route injection to simplify route configuration in the Hub. This is because the subnet environments of the headquarters and branches often change and there are many branch subnets.

Procedure

  1. Set IP addresses for FW interfaces and assign the interfaces to security zones.

    In this example, IP addresses are configured for Hub interfaces, and assign the interfaces to security zones. The public interface IP addresses of Spoke1 and Spoke2 are dynamically obtained using DHCP. In this example, the public interface IP addresses of Spoke1 and Spoke2 are 1.1.2.10/24 and 1.1.3.10/24 respectively.

    1. Choose Network > Interface. Click of GE 1/0/0. Set parameters as follows and click OK.

      Zone

      untrust

      IPv4

      IP Address

      1.1.1.10/24

    2. Click Add. Set parameters as follows and click OK.

      Interface Name

      LoopBack0

      Type

      		 Loopback Interface

      IPv4

      IP Address

      192.168.0.1/24

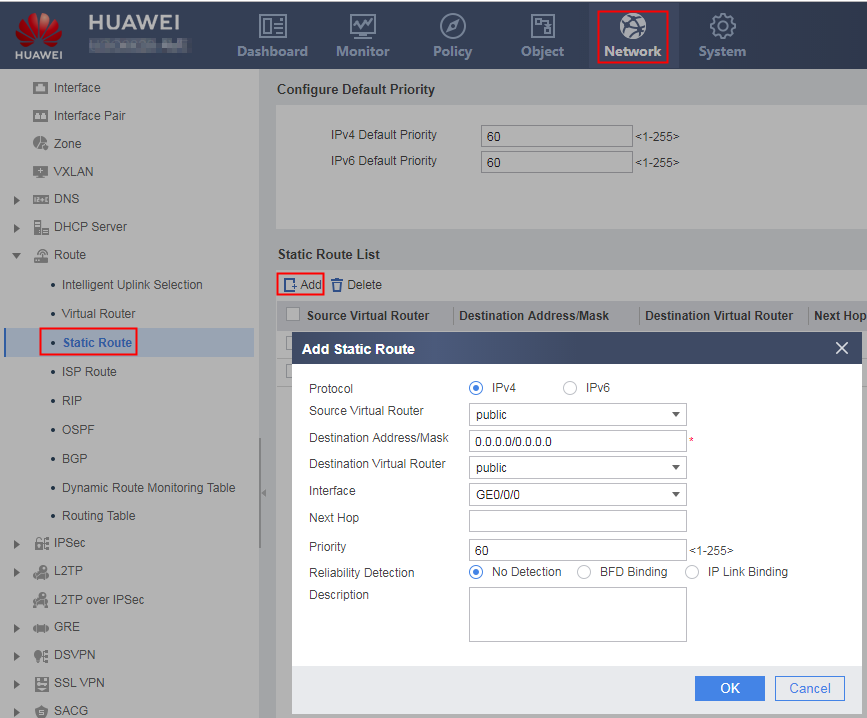

  2. Configure a public route on each device.

    Choose Network > Route > Static Route. Click Add. Set parameters as follows and click OK.

    Destination Address/Mask

    0.0.0.0/0.0.0.0

    Interface

    GE0/0/0

  3. Configure a security policy on each device.
    1. Choose Policy > Security Policy > Security Policy.
    2. Click Add. Select Add Security Policy. Configure interzone policies between user subnets based on parameters in the following table and click OK.

      In this example, loopback interfaces in the Local zone are used to simulate subnet users. Therefore, the interzone policy between the Local zone and security zone where the tunnel interface resides needs to be configured. Actually, the interzone policy between the security zones where subnets reside needs to be configured. For example, if the subnet of the enterprise resides in the Trust zone, configure the interzone policy between the Trust zone and security zone where the tunnel interface resides.

      Name

      rule1

      Source Zone

      untrust local

      Destination Zone

      untrust local

      Source Address/Region

      192.168.0.0/16

      Action

      Permit

    3. Click Add. Select Add Security Policy. Configure interzone policies for public interfaces based on parameters in the following table and click OK.

      Name

      rule2

      Source Zone

      untrust local

      Destination Zone

      untrust local

      Service

      gre

      Action

      Allow

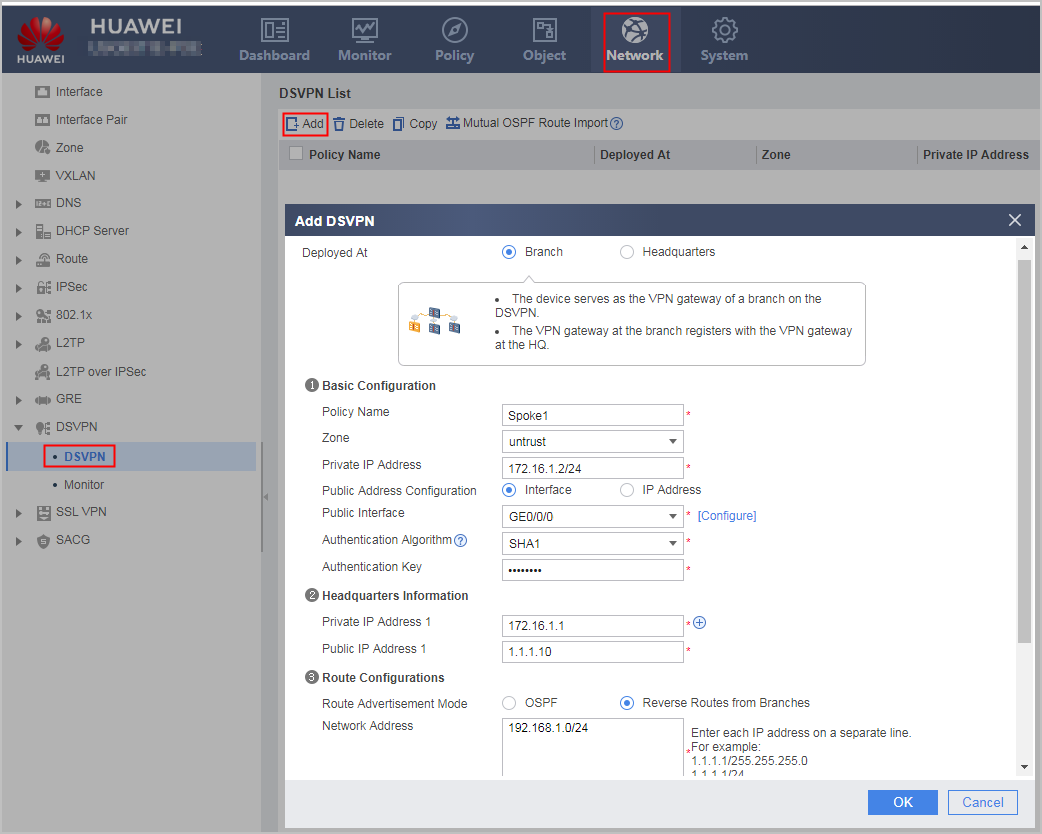

  4. Set DSVPN parameters for the Spokes.

    Spoke1 is used as an example.

    Choose Network > DSVPN > DSVPN. Click Add. Set parameters as follows and click OK.

    Basic Configuration

    Deployed At

    Branch

    Policy Name

    Spoke1

    Zone

    untrust

    Private IP Address

    172.16.1.2/24

    Private IP Address*Public Address Configuration

    Interface

    Public Interface

    GE0/0/0

    Authentication Key

    Planned by the network administrator. Ensure that the two ends of the tunnel have the same authentication key. In this example, the authentication key is Test!123.

    Headquarters Information

    Private IP Address

    172.16.1.1

    Public IP Address

    1.1.1.10

    Route Configurations

    Route Advertisement Mode

    Reverse Routes from Branches

    Network Address

    192.168.1.0/24

    Destination Network Address

    192.168.0.0/24

    192.168.2.0/24

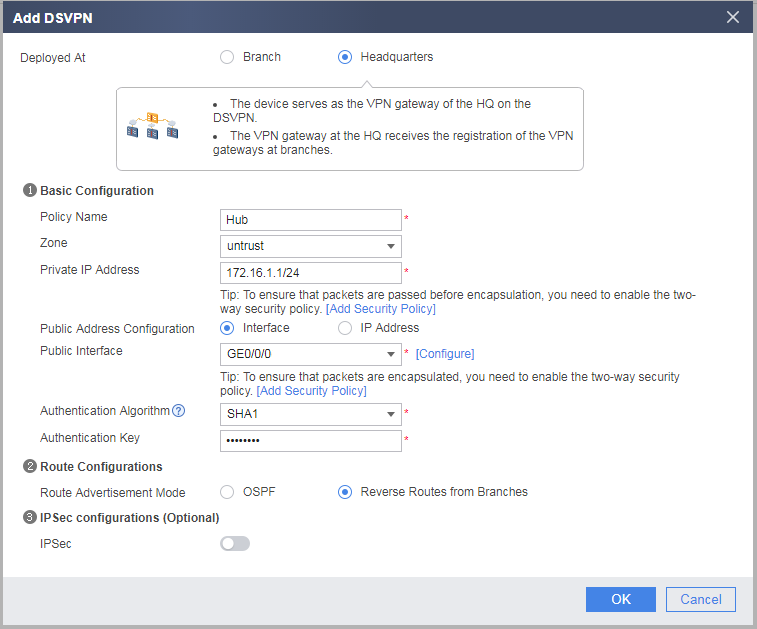

  5. Set DSVPN parameters for the Hub.

    Choose Network > DSVPN > DSVPN. Click Add. Set parameters as follows and click OK.

    Basic Configuration

    Deployed At

    Headquarters

    Policy Name

    Hub

    Zone

    untrust

    Private IP Address

    172.16.1.1/24

    Private IP Address*Public Address Configuration

    Interface

    Public Interface

    GE0/0/0

    Authentication Key

    Planned by the network administrator. Ensure that the two ends of the tunnel have the same authentication key. In this example, the authentication key is Test!123.

    Route Configurations

    Route Advertisement Mode

    Reverse Routes from Branches

Verification

  1. Use a user PC in Spoke1 to access a user PC in Spoke2 or configure the loopback interface of Spoke1 to ping the loopback interface of Spoke2. Trigger the Spokes to establish a dynamic mGRE tunnel.
    To use the ping command for detection, set the ping service of all firewall interfaces to Allow.
  2. Choose Network > DSVPN > Monitoring. You can find that the tunnels established by Spoke1 with the Hub and Spoke2 are in the UP state.

Configuration Scripts

  • Configuration script of Spoke1

    #
 sysname Spoke1
#
interface GigabitEthernet0/0/0
 ip address dhcp-alloc
#
interface LoopBack0
 ip address 192.168.1.1 255.255.255.0
 alias LoopBack0
#
interface Tunnel0
 description spoke
 ip address 172.16.1.2 255.255.255.0
 tunnel-protocol gre p2mp
 source GigabitEthernet0/0/0
 ospf network-type broadcast
 ospf dr-priority 0
 alias Spoke1
 nhrp authentication hash sha1 %^%#$]8@BBRhtL)i)m4/LP,5l$;gMF$xjY)RXoXCca3V%^%#
 nhrp shortcut
 nhrp entry multicast dynamic
 undo nhrp hub reverse-route enable
 nhrp entry 172.16.1.1 1.1.1.10 register preference 10
 nhrp reverse-route 192.168.1.0 mask 255.255.255.0

#
ospf 1
 area 0.0.0.0
  network 172.16.1.0 0.0.0.255
 area 0.0.0.1
  network 192.168.1.0 0.0.0.255
#
ip route-static 0.0.0.0 0.0.0.0 GigabitEthernet0/0/0
ip route-static 192.168.0.0 255.255.255.0 Tunnel0
ip route-static 192.168.2.0 255.255.255.0 Tunnel0
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet0/0/0
 add interface Tunnel0
#
security-policy
 rule name rule1
  source-zone local
  source-zone untrust
  destination-zone local
  destination-zone untrust
  source-address 192.168.0.0 mask 255.255.0.0
  action permit
 rule name rule2
  source-zone local
  source-zone untrust
  destination-zone local
  destination-zone untrust
  service gre
  action permit
#
return

  • Configuration script of Spoke2

    #
 sysname Spoke2
#
interface GigabitEthernet0/0/0
 ip address dhcp-alloc
#
interface LoopBack0
 ip address 192.168.2.1 255.255.255.0
 alias LoopBack0
#
interface Tunnel0
 description spoke
 ip address 172.16.1.3 255.255.255.0
 tunnel-protocol gre p2mp
 source GigabitEthernet0/0/0
 ospf network-type broadcast
 ospf dr-priority 0
 alias Spoke2
 nhrp authentication hash sha1 %^%#$]8@BBRhtL)i)m4/LP,5l$;gMF$xjY)RXoXCca3V%^%#
 nhrp shortcut
 nhrp entry multicast dynamic
 undo nhrp hub reverse-route enable
 nhrp entry 172.16.1.1 1.1.1.10 register preference 10
 nhrp reverse-route 192.168.2.0 mask 255.255.255.0
#
ospf 1
 area 0.0.0.0
  network 172.16.1.0 0.0.0.255
 area 0.0.0.1
  network 192.168.2.0 0.0.0.255
#
ip route-static 0.0.0.0 0.0.0.0 GigabitEthernet0/0/0
ip route-static 192.168.0.0 255.255.255.0 Tunnel0
ip route-static 192.168.1.0 255.255.255.0 Tunnel0
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet0/0/0
 add interface Tunnel0
#
security-policy
 rule name rule1
  source-zone local
  source-zone untrust
  destination-zone local
  destination-zone untrust
  source-address 192.168.0.0 mask 255.255.0.0
  action permit
 rule name rule2
  source-zone local
  source-zone untrust
  destination-zone local
  destination-zone untrust
  service gre
  action permit
#
return

  • Configuration script of the Hub

    #
 sysname Hub
#
interface GigabitEthernet0/0/0
 ip address 1.1.1.10 255.255.255.0
#
interface LoopBack0
 ip address 192.168.0.1 255.255.255.0
 alias LoopBack0
#
interface Tunnel0
 description hub
 ip address 172.16.1.1 255.255.255.255
 tunnel-protocol gre p2mp
 source GigabitEthernet0/0/0
 ospf network-type broadcast
 ospf dr-priority 2
 alias Hub
 nhrp authentication hash sha1 %^%#$]8@BBRhtL)i)m4/LP,5l$;gMF$xjY)RXoXCca3V%^%#
 nhrp redirect
 nhrp entry multicast dynamic
#
ospf 1
 area 0.0.0.0
  network 172.16.1.1 0.0.0.0
 area 0.0.0.1
  network 192.168.0.0 0.0.0.255
#
ip route-static 0.0.0.0 0.0.0.0 GigabitEthernet0/0/0
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet0/0/0
 add interface Tunnel0
#
security-policy
 rule name rule1
  source-zone local
  source-zone untrust
  destination-zone local
  destination-zone untrust
  source-address 192.168.0.0 mask 255.255.0.0
  action permit
 rule name rule2
  source-zone local
  source-zone untrust
  destination-zone local
  destination-zone untrust
  service gre
  action permit
#
return
