Web: Example for Configuring a Base Station to Obtain an IP Address from the FW Using the IKEv2 Configuration Payload

This section provides an example to describe how to enable a base station to use the IKEv2 configuration payload to obtain the private IP address from the FW after the FW establishes an IPSec tunnel with the base station.

Networking Requirements

As shown in Figure 1, the FW is deployed at the egress of network A, and the base station needs to securely communicate with the server on network A.

The FW needs to use IKEv2 to establish an IPSec tunnel with the base station and assign a private IP address of network A to the base station for the base station and network A to communicate.

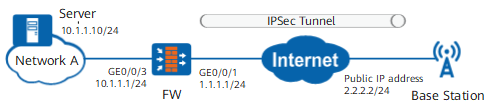

Figure 1 Networking diagram for a base station to use IKEv2 configuration payload to obtain the IP address assigned by the FW

Configuration Roadmap

  1. Complete the basic configurations of the FW.
  2. Create a template IPSec policy on the FW, because the access is always initiated from the Base Station to the server on network A.
  3. For the configuration of the Base Station, refer to the documents of the Base Station.

Procedure

  1. Complete the basic configurations of the FW.
    1. Set interface IP addresses and assign the interfaces to security zones.

      1. Choose Network > Interface.
      2. Click of GE0/0/1 and set the parameters as follows.

        Zone

        untrust

        IPv4

        IP Address

        1.1.1.1/24

      3. Click OK.
      4. Repeat the preceding steps to configure GE0/0/3.

        Zone

        trust

        IPv4

        IP Address

        10.1.1.1/24

    2. Configure security policies to allow specific subnets to communicate.

      1. Choose Policy > Security Policy > Security Policy.

      2. Click Add and set the following parameters for the Trust -> Untrust interzone policy. In the example, the private subnet assigned to the base station is 10.1.2.0/24.

        Name

        policy1

        Source Zone

        trust

        Destination Zone

        untrust

        Source Address/Region

        10.1.1.0/24

        Destination Address/Region

        10.1.2.0/24

        Action

        Permit

      3. Click OK.
      4. Repeat the preceding steps to configure Untrust -> Trust, Untrust -> Local, and Local -> Untrust interzone policies.

        The parameters of the security policy for the Untrust -> Trust interzone are as follows.

        Name

        policy2

        Source Zone

        untrust

        Destination Zone

        trust

        Source Address/Region

        10.1.2.0/24

        Destination Address/Region

        10.1.1.0/24

        Action

        Permit

        The parameters of the Untrust -> Local interzone policy are as follows.

        Name

        policy3

        Source Zone

        untrust

        Destination Zone

        local

        Source Address/Region

        2.2.2.2/32

        Destination Address/Region

        1.1.1.1/32

        Action

        Permit

        The parameters of the Local -> Untrust interzone policy are as follows.

        Name

        policy4

        Source Zone

        local

        Destination Zone

        untrust

        Source Address/Region

        1.1.1.1/32

        Destination Address/Region

        2.2.2.2/32

        Action

        Permit

        The local-untrust interzone policy controls whether IKE negotiation packets can pass through the FW. This policy can use the source and destination addresses, protocol, or port as the matching condition. In this example, the source and destination addresses are used as the matching condition. To use the protocol or port as the matching condition, you need to enable ESP and port 500 for UDP (port 4500 also in NAT traversal scenarios).

    3. Configure a default route. In the example, the next-hop IP address to the Internet is 1.1.1.2.

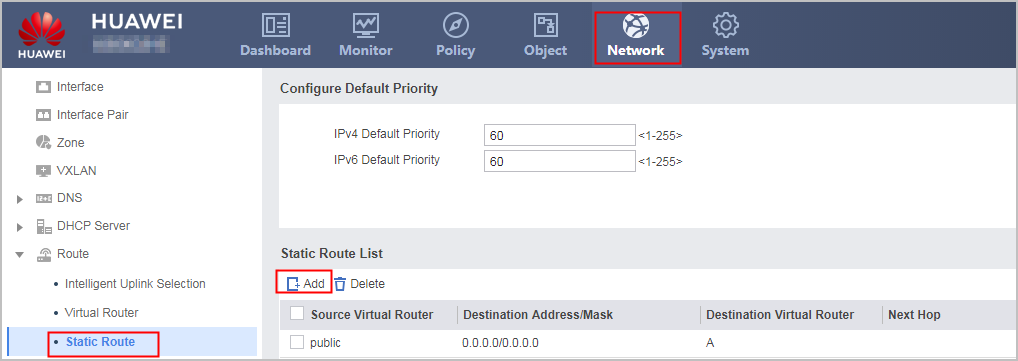

      1. Choose Network > Router > Static Route.

      2. Click Add and set parameters as follows.

        Destination Address/Mask

        0.0.0.0/0.0.0.0

        Next Hop

        1.1.1.2

      3. Click OK.

    4. Configure the IPSec tunnel on FW_A.

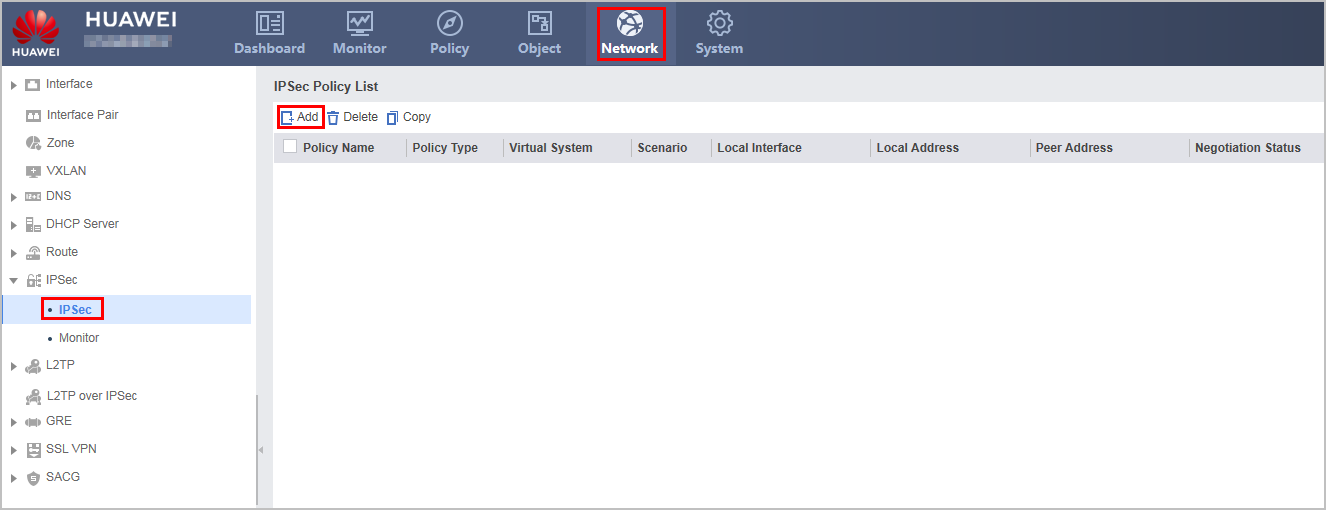

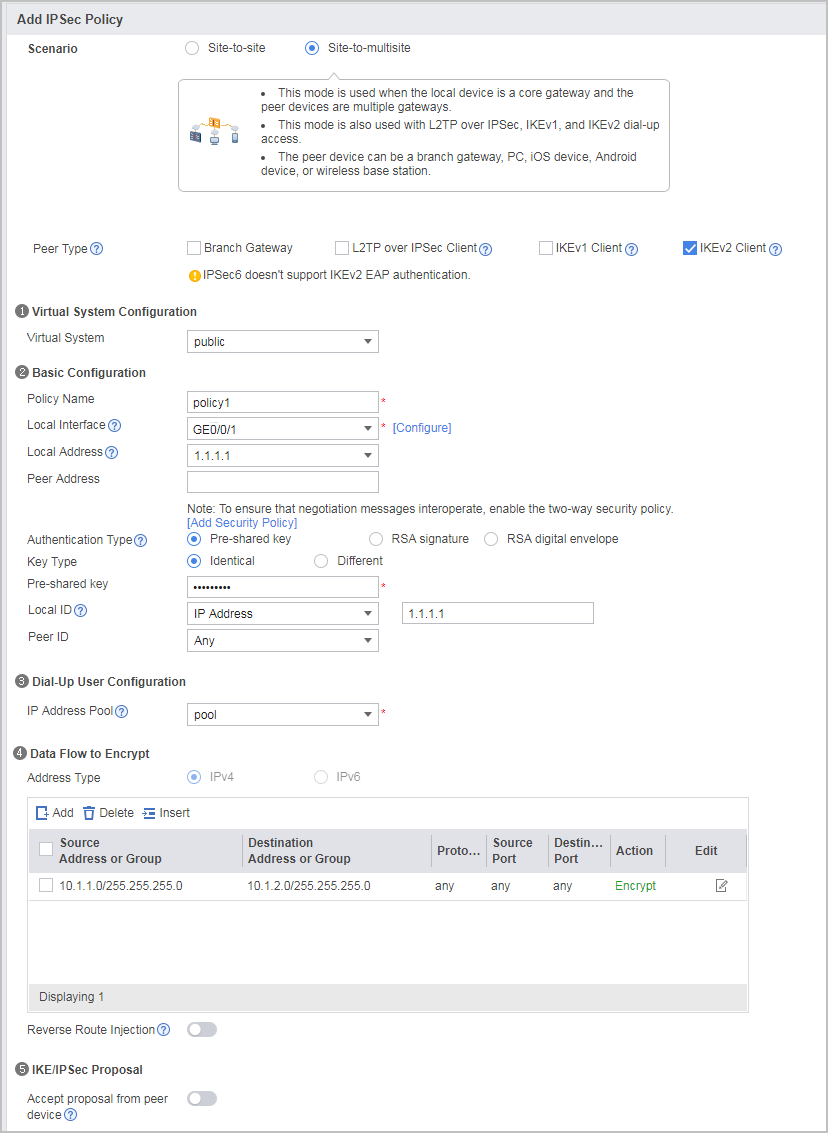

      1. Choose Network > IPSec > IPSec, click Add, and set the parameters shown in the following figure.

        In the example, the pre-shared key is Admin@123, and the default parameters are used for the security proposal. To change parameter values, expand the Advanced settings of IKE/IPSec Proposal. The security proposals used by the tunnel ends must be the same.

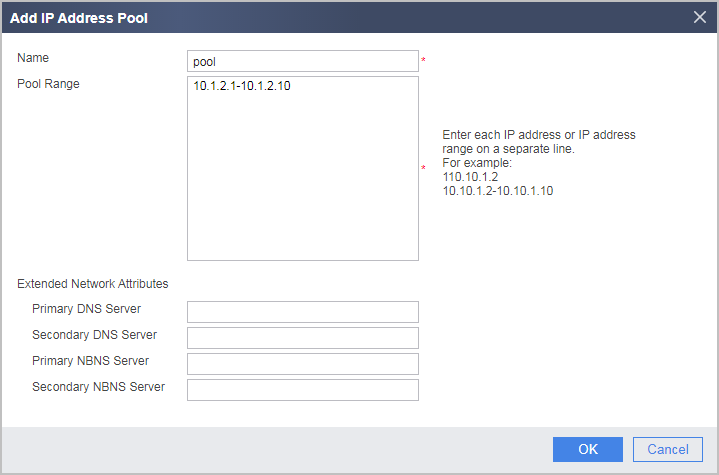

        Create an address pool in advance. The parameter settings are provided in the following figure.

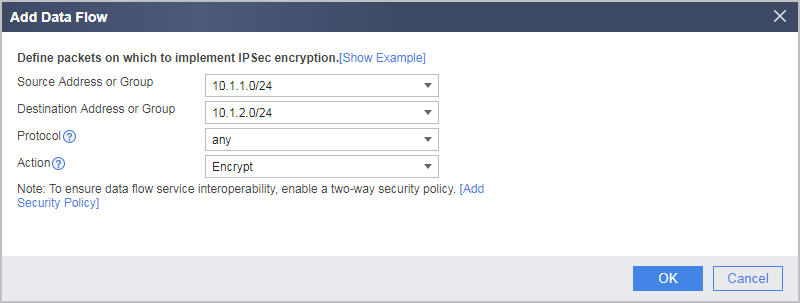

        Configure one data flow to be encrypted. The parameter settings are provided in the following figure.

      2. Click Apply in the IPSec policy configuration to complete the configuration of the FW.

Verification

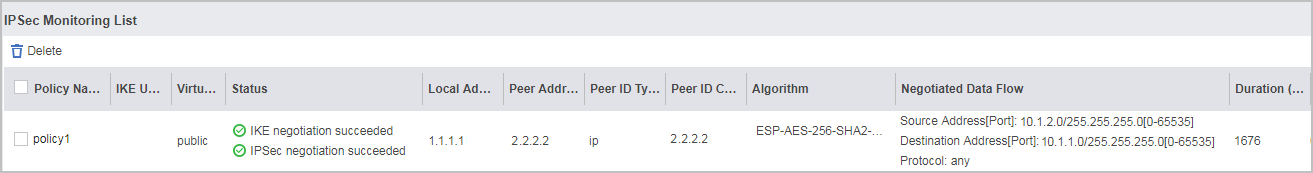

After the configuration is complete, view the IPSec tunnel status on the FW. If the following information is displayed, the IPSec tunnel is established.

If the base station has obtained the IP address assigned by the FW, and the base station and the server on network A can communicate properly, the service configuration succeeds.

Configuration Scripts

#
system-view
#
acl number 3005
 rule 5 permit ip source 10.1.1.0 0.0.0.255 destination 10.1.2.0 0.0.0.255
#
ip pool pool
 section 0 10.1.2.1 10.1.2.10
#
 service-scheme l2tpSScheme_1453722654786
  dhcp-server group dhcpGroup1453722654787
  ip-pool pool
#
ike proposal 2
 encryption-algorithm aes-256
 dh group2
 authentication-algorithm sha2-256
 authentication-method pre-share
 integrity-algorithm hmac-sha2-256
 prf hmac-sha2-256
#
ipsec proposal prop25119505373
 esp authentication-algorithm sha2-256
 esp encryption-algorithm aes-256
#
ike peer ike251195053730
 pre-shared-key %@%@/TtI*ib{a8;\cWUI"To#2n[\%@%@
 ike-proposal 2
 local-id 1.1.1.1
 service-scheme l2tpSScheme_1453722654786
#
ipsec policy-template tpl251195053730 1
 security acl 3005
 ike-peer ike251195053730
 proposal prop25119505373
 alias policy1
 scenario point-to-multi-point ikev2-user-access
#
ipsec policy ipsec2511950543 10000 isakmp template tpl251195053730
#
interface GigabitEthernet 0/0/3
 ip address 10.1.1.1 255.255.255.0
#
interface GigabitEthernet 0/0/1
 ip address 1.1.1.1 255.255.255.0
 ipsec policy ipsec2511950543
#
firewall zone untrust
 add interface GigabitEthernet0/0/1
#
firewall zone trust
 add interface GigabitEthernet0/0/3
#
security-policy
  rule name policy1
    source-zone trust
    destination-zone untrust
    source-address 10.1.1.0 mask 255.255.255.0
    destination-address 10.1.2.0 mask 255.255.255.0
    action permit
  rule name policy2
    source-zone untrust
    destination-zone trust
    source-address 10.1.2.0 mask 255.255.255.0
    destination-address 10.1.1.0 mask 255.255.255.0
    action permit
  rule name policy3
    source-zone untrust
    destination-zone local
    source-address 2.2.2.2 mask 255.255.255.255
    destination-address 1.1.1.1 mask 255.255.255.255
    action permit
  rule name policy4
    source-zone local
    destination-zone untrust
    source-address 1.1.1.1 mask 255.255.255.255
    destination-address 2.2.2.2 mask 255.255.255.255
    action permit
#
ip route-static 0.0.0.0 0.0.0.0 1.1.1.2
