CLI: Example for Configuring IPSec Intelligent Link Selection(Link switchover based on the link quality probe result)

As the gateway of a branch, the FW uses the IPSec intelligent link selection function for dynamic IPSec tunnel switching.

Networking Requirements

As shown in Figure 1, the headquarters and branch connect to the Internet through FW_A and FW_B, respectively. FW_A connects to the Internet through one link. FW_B connects to the Internet through two links.

Requirements are as follows:

An IPSec tunnel is established between FW_A and FW_B for the communication between the headquarters and branch.
FW_B first uses Link 1 to establish an IPSec tunnel to the headquarters. If the IPSec tunnel has a high packet loss ratio or delay, FW_B automatically uses Link 2 to establish another IPSec tunnel.

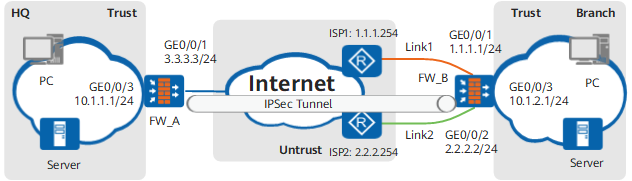

Figure 1 Networking diagram for IPSec intelligent link selection

The local interface in IPSec intelligent link selection can be an interface that dynamically obtains IP addresses through PPPoE or DHCP. That is, when GE0/0/1 or GE0/0/2 on FW_B in Figure 1 obtains IP addresses through PPPoE or DHCP, the IPSec intelligent link selection function is also available.

The method for configuring IPSec intelligent link selection when the local interface has a fixed IP address is the same as that when the local interface obtains IP addresses dynamically.

Data Planning

Item		FW_A	FW_B
Outside interface		Interface: GigabitEthernet 0/0/1 IP address: 3.3.3.3/24 Security zone: Untrust	Interface: GigabitEthernet 0/0/1 IP address: 1.1.1.1/24 Security zone: Untrust Interface: GigabitEthernet 0/0/2 IP address: 2.2.2.2/24 Security zone: Untrust
Inside interface		Interface: GigabitEthernet 0/0/3 IP address: 10.1.1.1/24 Security zone: Trust	Interface: GigabitEthernet 0/0/3 IP address: 10.1.2.1/24 Security zone: Trust
Method of configuring an IPSec policy		Template	IKE mode + IPSec intelligent link selection
IPSec proposal	Encapsulation mode	Tunnel mode	Tunnel mode
	IPSec protocol	ESP	ESP
	ESP authentication algorithm	SHA2-256	SHA2-256
	ESP encryption algorithm	AES-256	AES-256
IKE proposal	Authentication method	Pre-shared key	Pre-shared key
	Authentication algorithm	SHA2-256	SHA2-256
	Encryption algorithm	aes-xcbc-96 and hmac-sha2-256	aes-xcbc-96 and hmac-sha2-256
IKE peer	Negotiation mode	Main mode	Main mode
	Pre-shared key	Admin@123	Admin@123
	Identity type	IP	IP
	Remote IP address	Unspecified	3.3.3.3
	Version	V1	V1

Procedure

Configure FW_B (Branch).
1. Set an IP address for each interface and assign the interfaces to security zones.
  # Set IP addresses for interfaces.
```
<FW_B> system-view
[FW_B] interface GigabitEthernet 0/0/1
[FW_B-GigabitEthernet0/0/1] ip address 1.1.1.1 24
[FW_B-GigabitEthernet0/0/1] gateway 1.1.1.254
[FW_B-GigabitEthernet0/0/1] quit
[FW_B] interface GigabitEthernet 0/0/2
[FW_B-GigabitEthernet0/0/2] ip address 2.2.2.2 24
[FW_B-GigabitEthernet0/0/2] gateway 2.2.2.254
[FW_B-GigabitEthernet0/0/2] quit
[FW_B] interface GigabitEthernet 0/0/3
[FW_B-GigabitEthernet0/0/3] ip address 10.1.2.1 24
[FW_B-GigabitEthernet0/0/3] quit
```
  # Assign interfaces to security zones.
```
[FW_B] firewall zone trust
[FW_B-zone-trust] add interface GigabitEthernet 0/0/3
[FW_B-zone-trust] quit
[FW_B] firewall zone untrust
[FW_B-zone-untrust] add interface GigabitEthernet 0/0/1
[FW_B-zone-untrust] add interface GigabitEthernet 0/0/2
[FW_B-zone-untrust] quit
```
2. Configure security policies to allow specific subnets to communicate.
  # Configure policies for the interzone between the Trust zone and the Untrust zone, allowing packets before encapsulation and decapsulated packets through FW_B.
```
[FW_B] security-policy
[FW_B-policy-security] rule name 1
[FW_B-policy-security-rule-1] source-zone trust
[FW_B-policy-security-rule-1] destination-zone untrust
[FW_B-policy-security-rule-1] source-address 10.1.2.0 24
[FW_B-policy-security-rule-1] destination-address 10.1.1.0 24
[FW_B-policy-security-rule-1] action permit
[FW_B-policy-security-rule-1] quit
[FW_B-policy-security] rule name 2
[FW_B-policy-security-rule-2] source-zone untrust
[FW_B-policy-security-rule-2] destination-zone trust
[FW_B-policy-security-rule-2] source-address 10.1.1.0 24
[FW_B-policy-security-rule-2] destination-address 10.1.2.0 24
[FW_B-policy-security-rule-2] action permit
[FW_B-policy-security-rule-2] quit
```
  # Configure policies for the interzone between the Local zone and the Untrust zone, allowing IKE negotiation packets through FW_B.

  The local-untrust interzone policy controls whether IKE negotiation packets can pass through the FW. This policy can use the source and destination addresses, protocol, or port as the matching condition. In this example, the source and destination addresses are used as the matching condition. To use the protocol or port as the matching condition, you need to enable ESP and port 500 for UDP (port 4500 also in NAT traversal scenarios).
```
[FW_B-policy-security] rule name 3
[FW_B-policy-security-rule-3] source-zone local
[FW_B-policy-security-rule-3] destination-zone untrust
[FW_B-policy-security-rule-3] source-address 1.1.1.1 32
[FW_B-policy-security-rule-3] source-address 2.2.2.2 32
[FW_B-policy-security-rule-3] destination-address 3.3.3.3 32
[FW_B-policy-security-rule-3] action permit
[FW_B-policy-security-rule-3] quit
[FW_B-policy-security] rule name 4
[FW_B-policy-security-rule-4] source-zone untrust
[FW_B-policy-security-rule-4] destination-zone local
[FW_B-policy-security-rule-4] source-address 3.3.3.3 32
[FW_B-policy-security-rule-4] destination-address 1.1.1.1 32
[FW_B-policy-security-rule-4] destination-address 2.2.2.2 32
[FW_B-policy-security-rule-4] action permit
[FW_B-policy-security-rule-4] quit
```
3. Configure IPSec intelligent link selection profiles.

  When the local interface dynamically obtains IP addresses through DHCP or PPPoE, local local-address and nexthop nexthop-address in link are obtained from the DHCP or PPPoE server. You do not need to set values for them.
```
[FW_B] ipsec smart-link profile pro1
[FW_B-ipsec-smart-link-profile-pro1] link 1 interface GigabitEthernet 0/0/1 local 1.1.1.1 nexthop 1.1.1.254 remote 3.3.3.3
[FW_B-ipsec-smart-link-profile-pro1] link 2 interface GigabitEthernet 0/0/2 local 2.2.2.2 nexthop 2.2.2.254 remote 3.3.3.3
[FW_B-ipsec-smart-link-profile-pro1] link-quality-detection interval 1 number 10
[FW_B-ipsec-smart-link-profile-pro1] auto-switch cycles 3
[FW_B-ipsec-smart-link-profile-pro1] link-quality-threshold loss 30
[FW_B-ipsec-smart-link-profile-pro1] link-quality-threshold delay 500
```
  - In this example, the link-quality-detection source source-address destination destination-address command is not used to set the source or destination IP address for tunnel detection packets. Instead, FW_B uses the IP addresses of the local and peer IPSec tunnel interfaces as the source and destination IP addresses of the detection packets respectively.
  - You can run the auto-switch preempt enable command to enable automatic switchback to a high-priority link. This function is disabled by default. After this function is enabled, you can run the auto-switch preempt enable delay delay-time command to set the switchback delay. After automatic switchback to a high-priority link in IPSec intelligent link selection is enabled, FW_A continuously detects the quality (packet loss rate and delay) of the high-priority link after the IPSec tunnel is switched to the backup link. If the quality of the high-priority link meets the requirements within the configured switchback delay, FW_A automatically switches the IPSec tunnel back to the high-priority link.
    After automatic switchback to a high-priority link is enabled, the tunnel detection parameters in the IPSec intelligent link selection rule on the local device and the data flows to be encrypted in the IPSec policy on the peer device are different in the following configurations compared with those before the automatic switchback function is enabled:

    The source and destination IP addresses of link quality detection packets must be configured in the IPSec intelligent link selection rule on the local device. These IP addresses can not be the IP addresses of the interfaces at the two ends of the IPSec tunnel, they can be the IP addresses contained in the ACL rule.
    An ACL rule that uses the destination IP address of detection packets as the source IP address, the source IP address of the detection packets as the destination IP address, and ICMP as the protocol type must be configured in the IPSec policy of the peer device.
    For example, if the source IP address of the detection packets on FW_A (local device) is 10.10.10.10 and the destination IP address is 20.20.20.20, you need to configure the following link quality detection packets on FW_A:

    link-quality-detection source 10.10.10.10 destination 20.20.20.20

    Configure the following ACL rule on FW_B (peer device):

    rule permit icmp source 20.20.20.20 0 destination 10.10.10.10 0

    In addition, the link detection addresses are configured on FW>_A and FW_A does not use the IP addresses of the interfaces at the two ends of the link as the source address and destination address of the detection packets. Therefore, you do not need to configure the ACL rule that uses the IP addresses of the interfaces at the two ends of the IPSec tunnel as the source and destination IP addresses on FW_B.
4. Configure IPSec.
  # Configure ACLs to define the data flows to be protected.
```
[FW_B] acl 3000
[FW_B-acl-adv-3000] rule permit ip source 10.1.2.0 0.0.0.255 destination 10.1.1.0 0.0.0.255
[FW_B-acl-adv-3000] quit
```
  # Configure IPSec proposal tran1.
```
[FW_B] ipsec proposal tran1
[FW_B-ipsec-proposal-tran1] encapsulation-mode tunnel
[FW_B-ipsec-proposal-tran1] transform esp
[FW_B-ipsec-proposal-tran1] esp authentication-algorithm sha2-256
[FW_B-ipsec-proposal-tran1] esp encryption-algorithm aes-256
[FW_B-ipsec-proposal-tran1] quit
```
  # Configure IKE proposal 10.
```
[FW_B] ike proposal 10
[FW_B-ike-proposal-10] authentication-method pre-share
[FW_B-ike-proposal-10] authentication-algorithm sha2-256
[FW_B-ike-proposal-10] integrity-algorithm aes-xcbc-96 hmac-sha2-256
[FW_B-ike-proposal-10] quit
```
  # Configure IKE peer a1.
```
[FW_B] ike peer a1
[FW_B-ike-peer-a1] ike-proposal 10
[FW_B-ike-peer-a1] remote-address 3.3.3.3
[FW_B-ike-peer-a1] pre-shared-key Admin@123
[FW_B-ike-peer-a1] undo version 2
[FW_B-ike-peer-a1] quit
```
  # Configure IPSec policy group map1.
```
[FW_B] ipsec policy map1 10 isakmp
[FW_B-ipsec-policy-isakmp-map1-10] security acl 3000
[FW_B-ipsec-policy-isakmp-map1-10] proposal tran1
[FW_B-ipsec-policy-isakmp-map1-10] ike-peer a1
[FW_B-ipsec-policy-isakmp-map1-10] smart-link profile pro1   //Reference an IPSec intelligent link selection profile.
[FW_B-ipsec-policy-isakmp-map1-10] route inject dynamic
[FW_B-ipsec-policy-isakmp-map1-10] quit
```
  The IPSec policy that references an IPSec intelligent link selection profile does not need to apply to the interface. After determining to use a specific link to establish an IPSec tunnel, the FW will apply the IPSec policy that references the IPSec intelligent link selection profile to the local interface of the link.

Configure FW_A (Headquarters).

Set an IP address for each interface and assign the interfaces to security zones.

# Set IP addresses for interfaces.

<FW_A> system-view
[FW_A] interface GigabitEthernet 0/0/1
[FW_A-GigabitEthernet0/0/1] ip address 3.3.3.3 24
[FW_A-GigabitEthernet0/0/1] service-manage enable
[FW_A-GigabitEthernet0/0/1] service-manage ping permit
[FW_A-GigabitEthernet0/0/1] quit
[FW_A] interface GigabitEthernet 0/0/3
[FW_A-GigabitEthernet0/0/3] ip address 10.1.1.1 24
[FW_A-GigabitEthernet0/0/3] quit

In this example, FW_B pings the IP address of the public interface GE0/0/1 on FW_A to check the tunnel quality. Therefore, the service-manage ping permit command must be run on GE0/0/1. Otherwise, FW_A cannot respond to the ping request from FW_B.

# Assign interfaces to security zones.

[FW_A] firewall zone trust
[FW_A-zone-trust] add interface GigabitEthernet 0/0/3
[FW_A-zone-trust] quit
[FW_A] firewall zone untrust
[FW_A-zone-untrust] add interface GigabitEthernet 0/0/1
[FW_A-zone-untrust] quit

Configure security policies to allow specific subnets to communicate.

# Configure policies for the interzone between the Trust zone and the Untrust zone, allowing packets before encapsulation and decapsulated packets through FW_A.

[FW_A] security-policy
[FW_A-policy-security] rule name 1
[FW_A-policy-security-rule-1] source-zone trust
[FW_A-policy-security-rule-1] destination-zone untrust
[FW_A-policy-security-rule-1] source-address 10.1.1.0 24
[FW_A-policy-security-rule-1] destination-address 10.1.2.0 24
[FW_A-policy-security-rule-1] action permit
[FW_A-policy-security-rule-1] quit
[FW_A-policy-security] rule name 2
[FW_A-policy-security-rule-2] source-zone untrust
[FW_A-policy-security-rule-2] destination-zone trust
[FW_A-policy-security-rule-2] source-address 10.1.2.0 24
[FW_A-policy-security-rule-2] destination-address 10.1.1.0 24
[FW_A-policy-security-rule-2] action permit
[FW_A-policy-security-rule-2] quit

# Configure policies for the interzone between the Local zone and the Untrust zone, allowing IKE negotiation packets through FW_A.

The local-untrust interzone policy controls whether IKE negotiation packets can pass through the FW. This policy can use the source and destination addresses, protocol, or port as the matching condition. In this example, the source and destination addresses are used as the matching condition. To use the protocol or port as the matching condition, you need to enable ESP and port 500 for UDP (port 4500 also in NAT traversal scenarios).

[FW_A-policy-security] rule name 3
[FW_A-policy-security-rule-3] source-zone local
[FW_A-policy-security-rule-3] destination-zone untrust
[FW_A-policy-security-rule-3] source-address 3.3.3.3 32
[FW_A-policy-security-rule-3] destination-address 1.1.1.1 32
[FW_A-policy-security-rule-3] destination-address 2.2.2.2 32
[FW_A-policy-security-rule-3] action permit
[FW_A-policy-security-rule-3] quit
[FW_A-policy-security] rule name 4
[FW_A-policy-security-rule-4] source-zone untrust
[FW_A-policy-security-rule-4] destination-zone local
[FW_A-policy-security-rule-4] source-address 1.1.1.1 32
[FW_A-policy-security-rule-4] source-address 2.2.2.2 32
[FW_A-policy-security-rule-4] destination-address 3.3.3.3 32
[FW_A-policy-security-rule-4] action permit
[FW_A-policy-security-rule-4] quit
[FW_A-policy-security] quit

Configure an IPSec tunnel.

# Configure ACLs to define the data flows to be protected.

To enable ICMP link detection packets to pass through the IPSec tunnel, configure two ACL rules to allow ICMP packets.

[FW_A] acl 3000
[FW_A-acl-adv-3000] rule permit ip source 10.1.1.0 0.0.0.255 destination 10.1.2.0 0.0.0.255
[FW_A-acl-adv-3000] rule permit icmp source 3.3.3.3 0 destination 1.1.1.1 0
[FW_A-acl-adv-3000] rule permit icmp source 3.3.3.3 0 destination 2.2.2.2 0
[FW_A-acl-adv-3000] quit

# Configure IPSec proposal tran1.

[FW_A] ipsec proposal tran1
[FW_A-ipsec-proposal-tran1] encapsulation-mode tunnel
[FW_A-ipsec-proposal-tran1] transform esp
[FW_A-ipsec-proposal-tran1] esp authentication-algorithm sha2-256
[FW_A-ipsec-proposal-tran1] esp encryption-algorithm aes-256
[FW_A-ipsec-proposal-tran1] quit

# Configure IKE proposal 10.

[FW_A] ike proposal 10
[FW_A-ike-proposal-10] authentication-method pre-share
[FW_A-ike-proposal-10] authentication-algorithm sha2-256
[FW_A-ike-proposal-10] integrity-algorithm aes-xcbc-96 hmac-sha2-256
[FW_A-ike-proposal-10] quit

# Configure IKE peer b.

[FW_A] ike peer b
[FW_A-ike-peer-b] ike-proposal 10
[FW_A-ike-peer-b] pre-shared-key Admin@123
[FW_A-ike-peer-b] undo version 2
[FW_A-ike-peer-b] quit

# Configure an IPSec policy template named map_temp and numbered 1.

[FW_A] ipsec policy-template map_temp 1
[FW_A-ipsec-policy-template-map_temp-1] security acl 3000
[FW_A-ipsec-policy-template-map_temp-1] proposal tran1
[FW_A-ipsec-policy-template-map_temp-1] ike-peer b
[FW_A-ipsec-policy-template-map_temp-1] route inject dynamic preference 65
[FW_A-ipsec-policy-template-map_temp-1] quit

# Configure an IPSec policy named map1 and reference policy template map_temp in the IPSec policy.

[FW_A] ipsec policy map1 10 isakmp template map_temp

# Apply IPSec policy map1 to GigabitEthernet 0/0/1.

[FW_A] interface GigabitEthernet 0/0/1
[FW_A-GigabitEthernet0/0/1] ipsec policy map1
[FW_A-GigabitEthernet0/0/1] quit

Configuration Verification

After the configuration is complete, run the display ipsec smart-link profile command on FW_B. The command output shows that FW_B at the branch first uses Link 1 (1.1.1.1 -> 3.3.3.3) to establish an IPSec tunnel.

<FW_B> display ipsec smart-link profile name pro1
 ===========================================
  Name                      :pro1
  Detection number          :10
  Detection interval        :1
  Detection source IP       :1.1.1.1
  Detection destination IP  :3.3.3.3
  Cycles                    :3
  Switched times            :0
  Switch mode               :detection-based
  State                     :enable
  IPSec policy alias        :map1
  link list:
  ID local-address   remote-address  loss(%) delay(ms)  state
  1  1.1.1.1         3.3.3.3         0       0          active
  2  2.2.2.2         3.3.3.3         0       0          inactive
 ===========================================

After you run the display ike sa and display ipsec sa commands on FW_A and FW_B, the output indicates that the SAs are established. Take FW_B as an example. If the following information is displayed, the IKE SA and IPSec SA are successfully established.

<FW_B> display ipsec sa
 ===============================
 Interface: GigabitEthernet0/0/1
     path MTU: 1500
 ===============================

   -----------------------------
   IPsec policy name: "map1"
   sequence number: 10000
   mode: isakmp
   vpn: public
   -----------------------------
     connection id: 1158
     rule number: 5
     encapsulation mode: tunnel
     holding time: 0d 0h 0m 14s
     tunnel local : 1.1.1.1    tunnel remote: 3.3.3.3
     flow      source: 10.1.2.0-10.1.2.255 0-65535 0
     flow destination: 10.1.1.0-10.1.1.255 0-65535 0

     [inbound ESP SAs]
       spi: 35053809 (0x216e0f1)
       vpn: public  said: 182  cpuid: 0x0000
       proposal: ESP-ENCRYPT-AES ESP-AUTH-SHA2-256
       sa remaining key duration (kilobytes/sec): 200000000/3586
       max received sequence-number: 1
       udp encapsulation used for nat traversal: N

     [outbound ESP SAs]
       spi: 128477047 (0x7a86777)
       vpn: public  said: 183  cpuid: 0x0000
       proposal: ESP-ENCRYPT-AES ESP-AUTH-SHA2-256
       sa remaining key duration (kilobytes/sec): 200000000/3586
       max sent sequence-number: 1
       udp encapsulation used for nat traversal: N

   -----------------------------
   IPsec policy name: "map1"
   sequence number: 10000
   mode: isakmp
   vpn: public
   -----------------------------
     connection id: 1159
     rule number: 10
     encapsulation mode: tunnel
     holding time: 0d 0h 0m 15s
     tunnel local : 1.1.1.1    tunnel remote: 3.3.3.3
     flow      source: 1.1.1.1-1.1.1.1 0-65535 1
     flow destination: 3.3.3.3-3.3.3.3 0-65535 1

     [inbound ESP SAs]
       spi: 262933667 (0xfac0ca3)
       vpn: public  said: 184  cpuid: 0x0000
       proposal: ESP-ENCRYPT-AES ESP-AUTH-SHA2-256
       sa remaining key duration (kilobytes/sec): 200000000/3585
       max received sequence-number: 7
       udp encapsulation used for nat traversal: N

     [outbound ESP SAs]
       spi: 141108708 (0x86925e4)
       vpn: public  said: 185  cpuid: 0x0000
       proposal: ESP-ENCRYPT-AES ESP-AUTH-SHA2-256
       sa remaining key duration (kilobytes/sec): 200000000/3585
       max sent sequence-number: 8
       udp encapsulation used for nat traversal: N

<FW_B> display ike sa
 current ike sa number: 3
 --------------------------------------------------------------------------------------------------
 conn-id    peer                                    flag          phase vpn
 --------------------------------------------------------------------------------------------------
 1159       3.3.3.3                                 RD|ST|A       v2:2  public
 1158       3.3.3.3                                 RD|ST|A       v2:2  public
 1157       3.3.3.3                                 RD|ST|D|A     v2:1  public


   flag meaning
   RD--READY      ST--STAYALIVE     RL--REPLACED    FD--FADING    TO--TIMEOUT
   TD--DELETING   NEG--NEGOTIATING  D--DPD          M--ACTIVE     S--STANDBY
   A--ALONE

Shut down GE0/0/1 on the FW_B and then run the display ipsec smart-link profile command on FW_B. The command output shows that FW_B automatically uses Link 2 (2.2.2.2 -> 3.3.3.3) to establish an IPSec tunnel.

<FW_B> display ipsec smart-link profile name pro1
 ===========================================
  Name                      :pro1
  Detection number          :10
  Detection interval        :1
  Detection source IP       :2.2.2.2
  Detection destination IP  :3.3.3.3
  Cycles                    :3
  Switched times            :0
  Switch mode               :detection-based
  State                     :enable
  IPSec policy alias        :map1
  link list:
  ID local-address   remote-address  loss(%) delay(ms)  state
  1  1.1.1.1         3.3.3.3         50      0          inactive
  2  2.2.2.2         3.3.3.3         0       0          active
 ===========================================

Configuration Script

# Configuration script on FW_A (Headquarters):

#
acl number 3000
 rule 5 permit ip source 10.1.1.0 0.0.0.255 destination 10.1.2.0 0.0.0.255
 rule 10 permit icmp source 3.3.3.3 0 destination 1.1.1.1 0
 rule 15 permit icmp source 3.3.3.3 0 destination 2.2.2.2 0
#
ike proposal 10
 authentication-method pre-share
 authentication-algorithm sha2-256
 integrity-algorithm aes-xcbc-96 hmac-sha2-256
#
ike peer b
 pre-shared-key %$%$921NG0I(@0aT8y@GhOS97G>5%$%$
 ike-proposal 10
 undo version 2
#
ipsec proposal tran1
 encapsulation-mode tunnel
 transform esp
 esp authentication-algorithm sha2-256
 esp encryption-algorithm aes-256
#
ipsec policy-template map_temp 1
 security acl 3000
 ike-peer b
 proposal tran1
 route inject dynamic preference 65
#
ipsec policy map1 10 isakmp template map_temp
#
interface GigabitEthernet0/0/3
 ip address 10.1.1.1 255.255.255.0
#
interface GigabitEthernet0/0/1
 ip address 3.3.3.3 255.255.255.0
 ipsec policy map1
 service-manage ping permit
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/3
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet0/0/1
#
security-policy
  rule name 1
    source-zone trust
    destination-zone untrust
    source-address 10.1.1.0 24
    destination-address 10.1.2.0 24
    action permit
  rule name 2
    source-zone untrust
    destination-zone trust
    source-address 10.1.2.0 24
    destination-address 10.1.1.0 24
    action permit
  rule name 3
    source-zone local
    destination-zone untrust
    source-address 3.3.3.3 32
    destination-address 1.1.1.1 32
    destination-address 2.2.2.2 32
    action permit
  rule name 4
    source-zone untrust
    destination-zone local
    source-address 1.1.1.1 32
    source-address 2.2.2.2 32
    destination-address 3.3.3.3 32
    action permit

# Configuration script on FW_B (Branch):

#
acl number 3000
 rule 5 permit ip source 10.1.2.0 0.0.0.255 destination 10.1.1.0 0.0.0.255
#
ike proposal 10
 authentication-method pre-share
 authentication-algorithm sha2-256
 integrity-algorithm aes-xcbc-96 hmac-sha2-256
#
ike peer a1
 pre-shared-key %$%$QoAR'zsMp!&5y%7qm\)XOZQH%$%$
 ike-proposal 10
 remote-address 3.3.3.3
 undo version 2
#
ipsec proposal tran1
 encapsulation-mode tunnel
 transform esp
 esp authentication-algorithm sha2-256
 esp encryption-algorithm aes-256
#
ipsec smart-link profile pro1
 link-quality-detection interval 1 number 10
 auto-switch cycles 3
 link-quality-threshold loss 30
 link-quality-threshold delay 500
 link 1 interface GigabitEthernet 0/0/1 local 1.1.1.1 nexthop 1.1.1.254 remote 3.3.3.3
 link 2 interface GigabitEthernet 0/0/2 local 2.2.2.2 nexthop 2.2.2.254 remote 3.3.3.3
#
ipsec policy map1 10 isakmp
 security acl 3000
 ike-peer a1
 proposal tran1
 smart-link profile pro1
 route inject dynamic
#
interface GigabitEthernet0/0/3
 ip address 10.1.2.1 255.255.255.0
#
interface GigabitEthernet0/0/2
 ip address 2.2.2.2 255.255.255.0
 gateway 2.2.2.254
#
interface GigabitEthernet0/0/1
 ip address 1.1.1.1 255.255.255.0
 gateway 1.1.1.254
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/3
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet0/0/1
 add interface GigabitEthernet0/0/2
#
security-policy
  rule name 1
    source-zone trust
    destination-zone untrust
    source-address 10.1.2.0 24
    destination-address 10.1.1.0 24
    action permit
  rule name 2
    source-zone untrust
    destination-zone trust
    source-address 10.1.1.0 24
    destination-address 10.1.2.0 24
    action permit
  rule name 3
    source-zone local
    destination-zone untrust
    source-address 1.1.1.1 32
    source-address 2.2.2.2 32
    destination-address 3.3.3.3 32
    action permit
  rule name 4
    source-zone untrust
    destination-zone local
    source-address 3.3.3.3 32
    destination-address 1.1.1.1 32
    destination-address 2.2.2.2 32
    action permit
