CLI: Configuring Certificate Filtering to Implement Access Control

Network Requirements

On the enterprise network shown in Figure 1, the FW functions as the gateway. The FW and devices on networks A and B authenticate each other using certificates. Only the device passing certificate filtering check can set up an IPSec tunnel with the FW and access resources on network C.

A certificate access policy permits the following certificates:

Certificates with the issuer name networkb_ca
Certificates with the subject name cert_ca

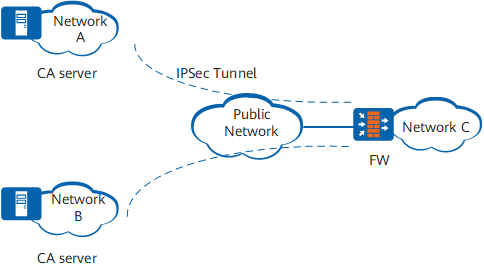

Figure 1 Configuring certificate filtering to implement access control

This example provides only the configurations related to certificate access policy.

Configuration Roadmap

The configuration roadmap is as follows:

Create a certificate attribute group and specify the attributes issuer name and subject name.
Create a certificate access policy and permit the certificates matching the specified attributes.

Procedure

# Configure the default certificate access control policy action is Deny. That is, the certificate is not allowed to pass verification.
```
<sysname> system-view
[sysname] sysname FW
[FW] pki certificate access-control-policy default deny
```
# Create a certificate attribute group group.
```
[FW] pki certificate attribute-group group
```

# Specify the issuer name networkb_ca and subject name cert_ca.

[FW-pki-attribute-group] attribute 1 issuer-name dn equ networkb_ca
[FW-pki-attribute-group] attribute 2 subject-name dn equ cert_ca
[FW-pki-attribute-group] quit

# Create a certificate access policy policy.

[FW] pki certificate access-control-policy name policy

# Configure the certificate access rule to permit the certificates matching the specified attributes.
```
[FW-pki-access-policy] rule 1 permit group
```
After the configurations are complete, only the device matching the certificate attributes (issuer name networkb_ca and subject name cert_ca) can set up an IPSec tunnel with the FW.

Configuration Files

#
sysname FW
#
pki certificate access-control-policy default deny
#
pki certificate attribute-group group
 attribute 1 issuer-name dn equ networkb_ca
 attribute 2 subject-name dn equ cert_ca
#
pki certificate access-control-policy name policy
 rule 1 permit group
#
return
