CLI: Example for Configuring Link Backup for an IPSec Tunnel
Networking Requirements

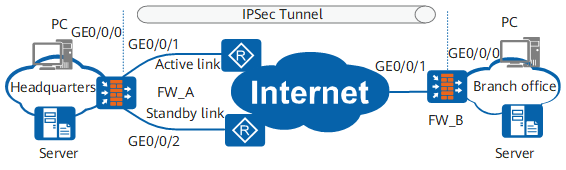

As shown in Figure 1, FW_A connects to the Internet through active and standby links, and active and standby interfaces use fixed public IP addresses. FW_B connects to the Internet through one link, and its outbound interface uses a fixed public IP address.
- An IPSec tunnel is established between FW_A and FW_B for the communication between the headquarters and the branch.
- When the active link of FW_A becomes faulty, services are automatically switched to the standby link. After the fault of the active link is rectified, services can be switched back.
Data Plan
Item |
Data |
|---|---|
FW_A |
Interface number: GigabitEthernet 0/0/0 IP address: 10.1.1.1/24 Security zone: Trust |
Interface number: GigabitEthernet 0/0/1 IP address: 1.1.3.1/24 Security zone: Untrust |
|
Interface number: GigabitEthernet 0/0/2 IP address: 1.1.4.1/24 Security zone: Untrust |
|
IPSec configuration Peer IP address: 2.2.2.2 Authentication type: pre-shared key Pre-shared key: Test!1234 Local ID type: IP address Peer ID type: IP address |
|
FW_B |
Interface number: GigabitEthernet 0/0/1 IP address: 2.2.2.2/24 Security zone: Untrust |
Interface number: GigabitEthernet 0/0/0 IP address: 10.2.1.1/24 Security zone: Trust |
|
Tunnel1 and Tunnel2 interfaces IP address: 2.2.2.2/24 An IPSec tunnel is established between FW_B and FW_A on the Internet using tunnel interfaces. In this example, interfaces Tunnel1 and Tunnel2 use the IP address of interface GigabitEthernet 0/0/1 as their public IP addresses. Security zone: Untrust |
|
IPSec configuration Peer IP address: 1.1.3.1 Authentication type: pre-shared key Pre-shared key: Test!1234 Local ID type: IP address Peer ID type: IP address |
Configuration Roadmap
To establish two IPSec tunnels between FW_A (with active and standby interfaces) and FW_B (with only one physical interface), configure two tunnel interfaces on FW_B. When an active/standby link switchover occurs on FW_A, the tunnel interfaces on FW_B are switched accordingly for re-negotiating an IPSec tunnel.
- Configure FW_A.
- Perform basic configurations, including setting interface IP addresses and adding the interfaces to corresponding security zones.
- Configure routes.
Configure two routes with different priorities from FW_A to FW_B for redundancy. Then bind IP-link to the active route for detecting the status of the active link. When the active link is faulty, the system automatically switches traffic to the standby link.
- Configure an IPSec policy.
- Apply the IPSec policy to interfaces.
Apply the same IPSec policy to active interface GigabitEthernet 0/0/1 and standby interface GigabitEthernet 0/0/2 on FW_A. When active interface GigabitEthernet 0/0/1 becomes faulty, standby interface GigabitEthernet 0/0/2 takes over service traffic.
- Configure FW_B.
- Perform basic configurations, including setting interface IP addresses and adding the interfaces to security zones.
Configure active interface Tunnel1 and standby interface Tunnel2 on FW_B, corresponding to active and standby interfaces on FW_A. When an active/standby link switchover occurs on FW_A, the tunnel interfaces on FW_B are switched accordingly.
- Configure routes.
Divert data flows to be protected on FW_B to tunnel interfaces along routes. Because FW_B has two tunnel interfaces, namely, Tunnel1 and Tunnel2, configure two routes with different priorities to the headquarters for redundancy. Then bind IP-link to the active route for detecting the status of the active link. When the active link is faulty, the system automatically switches traffic to the standby link.
- Configure IPSec policies.
An IPSec tunnel needs to be established between FW_B and FW_A using active and standby interfaces. Therefore, configure two IPSec policies.
- Apply IPSec policies to interfaces.
Apply IPSec policies to interfaces Tunnel1 and Tunnel2. When the active interface Tunnel1 becomes faulty, the standby interface Tunnel2 takes over service traffic.
- Perform basic configurations, including setting interface IP addresses and adding the interfaces to security zones.
Procedure
- Configure FW_A (headquarters).
- Configure firewall policies.
- Configure the security policies between the Trust and Untrust zones to allow original and decapsulated packets to pass through FW_A.
[FW_A] security-policy [FW_A-policy-security] rule name 1 [FW_A-policy-security-rule-1] source-zone trust [FW_A-policy-security-rule-1] destination-zone untrust [FW_A-policy-security-rule-1] source-address 10.1.1.0 24 [FW_A-policy-security-rule-1] destination-address 10.2.1.0 24 [FW_A-policy-security-rule-1] action permit [FW_A-policy-security-rule-1] quit [FW_A-policy-security] rule name 2 [FW_A-policy-security-rule-2] source-zone untrust [FW_A-policy-security-rule-2] destination-zone trust [FW_A-policy-security-rule-2] source-address 10.2.1.0 24 [FW_A-policy-security-rule-2] destination-address 10.1.1.0 24 [FW_A-policy-security-rule-2] action permit [FW_A-policy-security-rule-2] quit
- Configure the security policies between the Local and Untrust zones to allow IKE negotiation packets to pass through FW_A.
The Local-Untrust interzone policy controls whether IKE negotiation packets can pass through the FW. This policy can use the source and destination addresses, protocol, or port as the matching condition. In this example, the source and destination addresses are used as the matching condition. To use the protocol or port as the matching condition, you need to enable ESP and port 500 for UDP (port 4500 also in NAT traversal scenarios).
[FW_A-policy-security] rule name 3 [FW_A-policy-security-rule-3] source-zone local [FW_A-policy-security-rule-3] destination-zone untrust [FW_A-policy-security-rule-3] source-address 1.1.0.0 16 [FW_A-policy-security-rule-3] destination-address 2.2.2.0 24 [FW_A-policy-security-rule-3] action permit [FW_A-policy-security-rule-3] quit [FW_A-policy-security] rule name 4 [FW_A-policy-security-rule-4] source-zone untrust [FW_A-policy-security-rule-4] destination-zone local [FW_A-policy-security-rule-4] source-address 2.2.2.0 24 [FW_A-policy-security-rule-4] destination-address 1.1.0.0 16 [FW_A-policy-security-rule-4] action permit [FW_A-policy-security-rule-4] quit [FW_A-policy-security] quit
- Configure the security policies between the Trust and Untrust zones to allow original and decapsulated packets to pass through FW_A.
- Configure firewall policies.
- Configure FW_B (branch).
- Configure firewall policies.
- Configure the security policies between the Trust and Untrust zones to allow original and decapsulated packets to pass through FW_B.
[FW_B] security-policy [FW_B-policy-security] rule name 1 [FW_B-policy-security-rule-1] source-zone trust [FW_B-policy-security-rule-1] destination-zone untrust [FW_B-policy-security-rule-1] source-address 10.2.1.0 24 [FW_B-policy-security-rule-1] destination-address 10.1.1.0 24 [FW_B-policy-security-rule-1] action permit [FW_B-policy-security-rule-1] quit [FW_B-policy-security] rule name 2 [FW_B-policy-security-rule-2] source-zone untrust [FW_B-policy-security-rule-2] destination-zone trust [FW_B-policy-security-rule-2] source-address 10.1.1.0 24 [FW_B-policy-security-rule-2] destination-address 10.2.1.0 24 [FW_B-policy-security-rule-2] action permit [FW_B-policy-security-rule-2] quit
Configure the security policies between the Local and Untrust zones to allow IKE negotiation packets to pass through FW_B.
The Local-Untrust interzone policy controls whether IKE negotiation packets can pass through the FW. This policy can use the source and destination addresses, protocol, or port as the matching condition. In this example, the source and destination addresses are used as the matching condition. To use the protocol or port as the matching condition, you need to enable ESP and port 500 for UDP (port 4500 also in NAT traversal scenarios).
[FW_B-policy-security] rule name 3 [FW_B-policy-security-rule-3] source-zone local [FW_B-policy-security-rule-3] destination-zone untrust [FW_B-policy-security-rule-3] source-address 2.2.2.0 24 [FW_B-policy-security-rule-3] destination-address 1.1.0.0 16 [FW_B-policy-security-rule-3] action permit [FW_B-policy-security-rule-3] quit [FW_B-policy-security] rule name 4 [FW_B-policy-security-rule-4] source-zone untrust [FW_B-policy-security-rule-4] destination-zone local [FW_B-policy-security-rule-4] source-address 1.1.0.0 16 [FW_B-policy-security-rule-4] destination-address 2.2.2.0 24 [FW_B-policy-security-rule-4] action permit [FW_B-policy-security-rule-4] quit [FW_B-policy-security] quit
You should configure a security policy between the Local zone and the zone where the physical interface that sends and receives IKE negotiation packets resides, not between the Local zone and the zone where the tunnel interface resides.
- Configure the security policies between the Trust and Untrust zones to allow original and decapsulated packets to pass through FW_B.
- Configure firewall policies.
Verification
- After configurations are complete, run the ping command on PC1 at the headquarters to check whether PC2 at the branch can be pinged. If all configurations are correct, PC1 and PC2 can ping each other.
- On FW_A and FW_B, run the display ike sa command to display the status of the IKE SA establishment. If the following information (using FW_A as an example) is displayed, the IKE SA is established.
<FW_A> display ike sa IKE SA information : Conn-ID Peer VPN Flag(s) Phase RemoteType RemoteID ----------------------------------------------------------------------------- 40002 2.2.2.2:500 RD|ST|A v2:2 IP 2.2.2.2 40001 2.2.2.2:500 RD|ST|A v2:1 IP 2.2.2.2 Number of IKE SA : 2 ------------------------------------------------------------------------------- Flag Description: RD--READY ST--STAYALIVE RL--REPLACED FD--FADING TO--TIMEOUT HRT--HEARTBEAT LKG--LAST KNOWN GOOD SEQ NO. BCK--BACKED UP M--ACTIVE S--STANDBY A--ALONE NEG--NEGOTIATING - On FW_A and FW_B, run the display ipsec sa command to display the status of the IPSec SA establishment. If the following information (using FW_A as an example) is displayed, the IPSec SA is established.
<FW_A> display ipsec sa =============================== Interface: GigabitEthernet0/0/1 =============================== ----------------------------- IPSec policy name: "map1" Sequence number : 10 Acl group : 3000 Acl rule : 5 Mode : ISAKMP ----------------------------- Connection ID : 40002 Encapsulation mode: Tunnel Tunnel local : 1.1.3.1 Tunnel remote : 2.2.2.2 Flow source : 10.1.1.0/255.255.255.0 0/0 Flow destination : 10.2.1.0/255.255.255.0 0/0 [Outbound ESP SAs] SPI: 120037772 (0x727a18c) Proposal: ESP-ENCRYPT-AES-256 SHA2-256-128 SA remaining key duration (bytes/sec): 1887436464/3549 Max sent sequence-number: 5 UDP encapsulation used for NAT traversal: N SA decrypted packets (number/kilobytes): 4/0 [Inbound ESP SAs] SPI: 38742361 (0x24f2959) Proposal: ESP-ENCRYPT-AES-256 SHA2-256-128 SA remaining key duration (bytes/sec): 1887436464/3549 Max received sequence-number: 4 UDP encapsulation used for NAT traversal: N SA decrypted packets (number/kilobytes): 4/0 Anti-replay : Enable Anti-replay window size: 1024
- Run the display ipsec statistics command to check the changes of encrypted data packets. Take FW_A as an example.
<FW_A> display ipsec statistics IPSec statistics information: the security packet statistics: input/output security packets: 4/4 input/output security bytes: 400/400 input/output dropped security packets: 0/0 the encrypt packet statistics: send chip: 4, recv chip: 4, send err: 0 local cpu: 4, other cpu: 0, recv other cpu: 0 intact packet: 4, first slice: 0, after slice: 0 the decrypt packet statistics: send chip: 4, recv chip: 4, send err: 0 local cpu: 4, other cpu: 0, recv other cpu: 0 reass first slice: 0, after slice: 0 dropped security packet detail: can not find SA: 0, wrong SA: 0 authentication: 0, replay: 0 front recheck: 0, after recheck: 0 change cpu enc: 0, dec change cpu: 0 fib search: 0, output l3: 0 flow err: 0, slice err: 0, byte limit: 0 negotiate about packet statistics: IKE fwd packet ok: 23300, err: 0 IKE ctrl packet inbound ok: 22100, outbound ok: 1105 SoftExpr: 0, HardExpr: 0, DPDOper: 0 trigger ok: 0, switch sa: 2, sync sa: 0 recv IKE nat keepalive: 0, IKE input: 0 - Disable interface GigabitEthernet 0/0/1 on FW_A to check whether links are switched over by performing the following operations:
- Run the display ike sa and display ipsec sa commands. You can find that SAs already exist.
- Packets can be received and transmitted between the headquarters and the branch. Run the display ipsec statistics command. You can view the increase in packet quantity.
Configuration Files
FW_A (headquarters) configuration file
# sysname FW_A # acl number 3000 rule 5 permit ip source 10.1.1.0 0.0.0.255 destination 10.2.1.0 0.0.0.255 # ipsec proposal tran1 esp authentication-algorithm sha2-256 esp encryption-algorithm aes-256 # ike proposal 10 encryption-algorithm aes-256 dh group14 authentication-algorithm sha2-256 authentication-method pre-share integrity-algorithm hmac-sha2-256 prf hmac-sha2-256 # ike peer b ike-proposal 10 remote-address 2.2.2.2 pre-shared-key %$%$SP!UWlu=$B7`~B!@iRn+jvmd%$%$ # ipsec policy map1 10 isakmp security acl 3000 ike-peer b proposal tran1 # ipsec policy map2 10 isakmp security acl 3000 ike-peer b proposal tran1 # interface GigabitEthernet0/0/0 undo shutdown ip address 10.1.1.1 24 interface GigabitEthernet0/0/1 undo shutdown ip address 1.1.3.1 24 ipsec policy map1 interface GigabitEthernet0/0/2 undo shutdown ip address 1.1.4.1 24 ipsec policy map2 # firewall zone trust add interface GigabitEthernet0/0/0 # firewall zone untrust add interface GigabitEthernet0/0/1 add interface GigabitEthernet0/0/2 # ip-link check enable ip-link name n1 destination 2.2.2.2 interface GigabitEthernet0/0/1 next-hop 1.1.3.2 # ip route-static 10.2.1.0 24 1.1.3.2 preference 10 track ip-link n1 ip route-static 10.2.1.0 24 1.1.4.2 preference 20 ip route-static 0.0.0.0 0.0.0.0 1.1.3.2 preference 10 track ip-link n1 ip route-static 0.0.0.0 0.0.0.0 1.1.4.2 preference 20 # security-policy rule name 1 source-zone trust destination-zone untrust source-address 10.1.1.0 255.255.255.0 destination-address 10.2.1.0 255.255.255.0 action permit rule name 2 source-zone untrust destination-zone trust source-address 10.2.1.0 255.255.255.0 destination-address 10.1.1.0 255.255.255.0 action permit rule name 3 source-zone local destination-zone untrust source-address 1.1.0.0 255.255.0.0 destination-address 2.2.2.0 255.255.255.0 action permit rule name 4 source-zone untrust destination-zone local source-address 2.2.2.0 255.255.255.0 destination-address 1.1.0.0 255.255.0.0 action permit # return
FW_B (branch) configuration file
# sysname FW_B # acl number 3000 rule 5 permit ip source 10.2.1.0 0.0.0.255 destination 10.1.1.0 0.0.0.255 # ipsec proposal tran1 esp authentication-algorithm sha2-256 esp encryption-algorithm aes-256 # ike proposal 10 encryption-algorithm aes-256 dh group14 authentication-algorithm sha2-256 authentication-method pre-share integrity-algorithm hmac-sha2-256 prf hmac-sha2-256 # ike peer a1 ike-proposal 10 remote-address 1.1.3.1 pre-shared-key %$%$SP!UWlu=$B7`~B!@iRn+jvmd%$%$ # ike peer a2 ike-proposal 10 remote-address 1.1.4.1 pre-shared-key %$%$SP!UWlu=$B7`~B!@iRn+jvmd%$%$ # ipsec policy map1 10 isakmp security acl 3000 proposal tran1 ike-peer a1 # ipsec policy map2 10 isakmp security acl 3000 proposal tran1 ike-peer a2 # interface tunnel 1 ip address unnumbered interface GigabitEthernet0/0/1 tunnel-protocol ipsec ipsec policy map1 interface tunnel 2 ip address unnumbered interface GigabitEthernet0/0/1 tunnel-protocol ipsec ipsec policy map2 # interface GigabitEthernet0/0/0 undo shutdown ip address 10.2.1.1 24 interface GigabitEthernet0/0/1 undo shutdown ip address 2.2.2.2 24 # firewall zone trust add interface GigabitEthernet0/0/0 # firewall zone untrust add interface GigabitEthernet0/0/1 add interface tunnel1 add interface tunnel2 # ip-link check enable ip-link name n1 destination 1.1.3.1 interface GigabitEthernet 0/0/1 next-hop 2.2.2.1 # ip route-static 10.1.1.0 255.255.255.0 Tunnel 1 preference 10 track ip-link n1 ip route-static 10.1.1.0 255.255.255.0 Tunnel 2 preference 20 ip route-static 0.0.0.0 0.0.0.0 2.2.2.1 # security-policy rule name 1 source-zone trust destination-zone untrust source-address 10.2.1.0 255.255.255.0 destination-address 10.1.1.0 255.255.255.0 action permit rule name 2 source-zone untrust destination-zone trust source-address 10.1.1.0 255.255.255.0 destination-address 10.2.1.0 255.255.255.0 action permit rule name 3 source-zone local destination-zone untrust source-address 2.2.2.0 255.255.255.0 destination-address 1.1.0.0 255.255.0.0 action permit rule name 4 source-zone untrust destination-zone local source-address 1.1.0.0 255.255.0.0 destination-address 2.2.2.0 255.255.255.0 action permit # return
