CLI: Example for Configuring Application Behavior Control

Application behavior control manages the HTTP and FTP behavior of intranet users.

Networking Requirements

As shown in Figure 1, the FW is deployed at the intranet egress as the enterprise egress gateway. Employees of the enterprise are classified into R&D personnel and marketing personnel. User groups research and marketing are created, and the related configuration of authentication is complete. It is required to configure application behavior control on the FW to control the HTTP and FTP Internet access behavior of R&D personnel and marketing personnel.

All HTTP and FTP behavior of the R&D personnel are denied during working hours (09:00:00 to 17:00:00 on workdays) to avoid degrading the working efficiency.
R&D personnel can browse web pages and download files through HTTP during non-working hours (including weekends and the non-working hours on workdays), but other HTTP and FTP behavior is denied.
Due to the need for information security and communicating with customers, the marketing personnel can upload files not larger than 100M through HTTP or FTP. In addition, the size of the content to be posted each time on the Internet is limited within 2000 bytes.

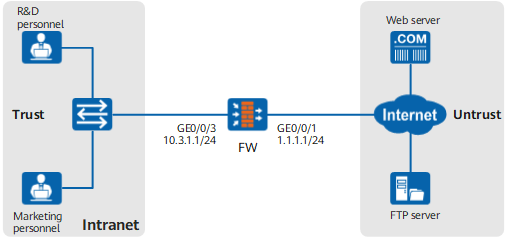

Figure 1 Networking diagram of application behavior control

Data Planning

Item	Data	Description
Application behavior control profile	Name: profile_app_research_work Control option: All HTTP and FTP behavior is denied.	Controls the HTTP and FTP behavior of R&D personnel during working hours.
	Name: profile_app_research_rest Control option: Only HTTP web browsing, HTTP proxy and HTTP file download are permitted.	Controls the HTTP and FTP behavior of R&D personnel during non-working hours.
	Name: profile_app_marketing Control option: All HTTP and FTP behavior is permitted, the block threshold in HTTP POST operations is set to 2000 bytes, and the block threshold in HTTP and FTP file upload is set to 102400 KB (100M).	Controls the HTTP and FTP behavior of the marketing personnel.
Security policy	Name: policy_sec_research_work Source zone: trust Destination zone: untrust Employee: research (R&D user group) Schedule: working_hours (09:00:00 to 17:00:00 on workdays) Action: permit Application behavior control configuration profile: profile_app_research_work	R&D personnel are allowed to access the Internet. Schedule working_hours and application behavior control profile profile_app_research_work are referenced to control the application behavior of R&D personnel during working hours.
	Name: policy_sec_research_rest Source zone: trust Destination zone: untrust Employee: research (R&D user group) Schedule: off_hours (weekends and 00:00:00 to 08:59:59 and 17:01:00 to 23:59:59 on workdays) Action: permit Application behavior control configuration profile: profile_app_research_rest	R&D personnel are allowed to access the Internet. Schedule off_hours and application behavior control profile profile_app_research_rest are referenced to control the application behavior of R&D personnel during non-working hours.
	Name: policy_sec_marketing Source zone: trust Destination zone: untrust Employee: marketing (marketing user group) Action: permit Application behavior control configuration profile: profile_app_marketing	Marketing personnel are allowed to access the Internet. Application behavior control profile profile_app_marketing is referenced to control the application behavior of the marketing personnel.

Procedure

Set the IP address and security zone of the interface.

Set an IP address for interface GigabitEthernet 0/0/1 and assign the interface to the untrust zone.

<FW> system-view
[FW] interface GigabitEthernet 0/0/1
[FW-GigabitEthernet0/0/1] ip address 1.1.1.1 24
[FW-GigabitEthernet0/0/1] quit
[FW] firewall zone untrust
[FW-zone-untrust] add interface GigabitEthernet 0/0/1
[FW-zone-untrust] quit

Set an IP address for interface GigabitEthernet 0/0/3 and add the interface to the trust zone.

[FW] interface GigabitEthernet 0/0/3
[FW-GigabitEthernet0/0/3] ip address 10.3.1.1 24
[FW-GigabitEthernet0/0/3] quit
[FW] firewall zone trust
[FW-zone-trust] add interface GigabitEthernet 0/0/3
[FW-zone-trust] quit

Create three application behavior control profiles: profile_app_research_work for R&D personnel during working hours, profile_app_research_rest for R&D personnel during non-working hours, and profile_app_marketing for marketing personnel.

Create application behavior control profile profile_app_research_work for R&D personnel in working hours.

[FW] profile type app-control name profile_app_research_work
[FW-profile-app-control-profile_app_research_work] http-control post action deny
[FW-profile-app-control-profile_app_research_work] http-control web-browse action deny
[FW-profile-app-control-profile_app_research_work] http-control proxy action deny
[FW-profile-app-control-profile_app_research_work] http-control file direction upload action deny
[FW-profile-app-control-profile_app_research_work] http-control file direction download action deny
[FW-profile-app-control-profile_app_research_work] ftp-control file direction upload action deny
[FW-profile-app-control-profile_app_research_work] ftp-control file direction download action deny
[FW-profile-app-control-profile_app_research_work] ftp-control file delete action deny
[FW-profile-app-control-profile_app_research_work] quit

Create application behavior control profile profile_app_research_rest for R&D personnel in non-working hours.

[FW] profile type app-control name profile_app_research_rest
[FW-profile-app-control-profile_app_research_rest] http-control post action deny
[FW-profile-app-control-profile_app_research_rest] http-control web-browse action permit
[FW-profile-app-control-profile_app_research_rest] http-control proxy action permit
[FW-profile-app-control-profile_app_research_rest] http-control file direction upload action deny
[FW-profile-app-control-profile_app_research_rest] http-control file direction download action permit
[FW-profile-app-control-profile_app_research_rest] ftp-control file direction upload action deny
[FW-profile-app-control-profile_app_research_rest] ftp-control file direction download action deny
[FW-profile-app-control-profile_app_research_rest] ftp-control file delete action deny
[FW-profile-app-control-profile_app_research_rest] quit

Create application behavior control profile profile_app_marketing for marketing personnel.

[FW] profile type app-control name profile_app_marketing
[FW-profile-app-control-profile_app_marketing] http-control post action permit
[FW-profile-app-control-profile_app_marketing] http-control post block-size 2000
[FW-profile-app-control-profile_app_marketing] http-control web-browse action permit
[FW-profile-app-control-profile_app_marketing] http-control proxy action permit
[FW-profile-app-control-profile_app_marketing] http-control file direction upload action permit
[FW-profile-app-control-profile_app_marketing] http-control file direction upload block-size 102400
[FW-profile-app-control-profile_app_marketing] http-control file direction download action permit
[FW-profile-app-control-profile_app_marketing] ftp-control file direction upload action permit
[FW-profile-app-control-profile_app_marketing] ftp-control file direction upload block-size 102400
[FW-profile-app-control-profile_app_marketing] ftp-control file direction download action permit
[FW-profile-app-control-profile_app_marketing] ftp-control file delete action permit
[FW-profile-app-control-profile_app_marketing] quit

Create schedule working_hours covering 09:00:00 to 17:00:00 on workdays.

[FW] time-range working_hours
[FW-time-range-working_hours] period-range 09:00:00 to 17:00:00 mon tue wed thu fri
[FW-time-range-working_hours] quit

Create schedule off_hours, covering weekends and 00:00:00 to 08:59:59 and 17:01:00 to 23:59:59 on workdays.

[FW] time-range off_hours
[FW-time-range-off_hours] period-range 00:00:00 to 23:59:59 sat sun
[FW-time-range-off_hours] period-range 00:00:00 to 08:59:59 mon tue wed thu fri
[FW-time-range-off_hours] period-range 17:01:00 to 23:59:59 mon tue wed thu fri
[FW-time-range-off_hours] quit

Create security policy.

Create security policy policy_sec_research_work and reference the user, schedule, and application behavior control profile to control the application behavior of R&D personnel during working hours.

[FW] security-policy
[FW-policy-security] rule name policy_sec_research_work
[FW-policy-security-rule-policy_sec_research_work] source-zone trust
[FW-policy-security-rule-policy_sec_research_work] destination-zone untrust
[FW-policy-security-rule-policy_sec_research_work] user user-group /default/research
[FW-policy-security-rule-policy_sec_research_work] time-range working_hours
[FW-policy-security-rule-policy_sec_research_work] profile app-control profile_app_research_work
[FW-policy-security-rule-policy_sec_research_work] action permit
[FW-policy-security-rule-policy_sec_research_work] quit

Repeat the preceding steps to create security policy policy_sec_research_rest and reference the user, schedule, and application behavior control profile to control the application behavior of R&D personnel during non-working hours.

[FW-policy-security] rule name policy_sec_research_rest
[FW-policy-security-rule-policy_sec_research_rest] source-zone trust
[FW-policy-security-rule-policy_sec_research_rest] destination-zone untrust
[FW-policy-security-rule-policy_sec_research_rest] user user-group /default/research
[FW-policy-security-rule-policy_sec_research_rest] time-range off_hours
[FW-policy-security-rule-policy_sec_research_rest] profile app-control profile_app_research_rest
[FW-policy-security-rule-policy_sec_research_rest] action permit
[FW-policy-security-rule-policy_sec_research_rest] quit

Repeat the preceding steps to create security policy policy_sec_marketing and reference the user and application behavior control profile to control the application behavior of marketing personnel.

[FW-policy-security] rule name policy_sec_marketing
[FW-policy-security-rule-policy_sec_marketing] source-zone trust
[FW-policy-security-rule-policy_sec_marketing] destination-zone untrust
[FW-policy-security-rule-policy_sec_marketing] user user-group /default/marketing
[FW-policy-security-rule-policy_sec_marketing] profile app-control profile_app_marketing
[FW-policy-security-rule-policy_sec_marketing] action permit
[FW-policy-security-rule-policy_sec_marketing] quit

Commit the content security profiles.

[FW] engine configuration commit
Info: The operation may last for several minutes, please wait.
Info: App-control submitted configurations successfully.
Info: Finish committing engine compiling.

Configuration Verification

After the configuration is complete, verify the HTTP and FTP permissions on the PCs of the R&D personnel and marketing personnel. If the result meets the requirement, applying the application behavior control profile and security policy succeeds. Otherwise, check and correct the configuration of the application behavior control profile and security policy.

Configuration Scripts

The following lists related scripts of this configuration example.

#
 sysname FW
#
 time-range off_hours
  period-range 00:00:00 to 23:59:59 off-day
  period-range 00:00:00 to 08:59:59 working-day
  period-range 17:01:00 to 23:59:59 working-day
 time-range working_hours
  period-range 09:00:00 to 17:00:00 working-day
#
interface GigabitEthernet0/0/1
 undo shutdown
 ip address 1.1.1.1 255.255.255.0
#
interface GigabitEthernet0/0/3
 undo shutdown
 ip address 10.3.1.1 255.255.255.0
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/3
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet0/0/1
#
profile type app-control name profile_app_research_work
 http-control web-browse action deny
 http-control proxy action deny
 http-control post action deny
 http-control file direction upload action deny
 http-control file direction download action deny
 ftp-control file delete action deny
 ftp-control file direction upload action deny
 ftp-control file direction download action deny
#
profile type app-control name profile_app_research_rest
 http-control post action deny
 http-control file direction upload action deny
 ftp-control file delete action deny
 ftp-control file direction upload action deny
 ftp-control file direction download action deny
#
profile type app-control name profile_app_marketing
 http-control post block-size 2000
 http-control file direction upload block-size 102400
 ftp-control file direction upload block-size 102400
#
security-policy
 rule name policy_sec_research_work
  source-zone trust
  destination-zone untrust
  user user-group /default/research
  time-range working_hours
  profile app-control profile_app_research_work
  action permit
 rule name policy_sec_research_rest
  source-zone trust
  destination-zone untrust
  user user-group /default/research
  time-range off_hours
  profile app-control profile_app_research_rest
  action permit
 rule name policy_sec_marketing
  source-zone untrust
  destination-zone trust
  user user-group /default/marketing
  profile app-control profile_app_marketing
  action permit
#
return
