Web: Example for Implementing URL Filtering on Decrypted HTTPS Traffic

This section provides an example for configuring SSL-encrypted traffic detection to decrypt HTTPS traffic into HTTP traffic and then implement URL filtering on the HTTP traffic.

Networking Requirements

As shown in Figure 1, the FW is deployed at the network border as the enterprise's gateway to implement URL filtering on HTTPS requests sent by users to access the Internet.

An enterprise allows employees to access most websites except pornographic and illegal websites. In addition, the enterprise wants to:

  • Permit employees to access intranet websites: www.example1.com and www.example2.com.

  • Prevent employees from accessing external forum websites: www.example3.com and www.example4.com.

Figure 1 Implementing URL filtering on decrypted HTTPS traffic

Configuration Roadmap

  1. Set the IP address and security zone of the interface.

  2. Create the URL filtering profile url_profile_01.

    • Add www.example1.com and www.example2.com to the whitelist. Employees can access the whitelisted websites.
    • Add www.example3.com and www.example4.com to the blacklist. Employees are not allowed to access the blacklisted websites.
    • Set the URL filtering level to Medium to block access requests for pornographic and illegal websites.
  3. Configure a security policy and reference the URL filtering profile url_profile_01 to control the URL access requests of the enterprise employees.
  4. Configure SSL-encrypted traffic detection to decrypt HTTPS traffic.
    • Configure the SSL decryption certificate and import and install the SSL decryption certificate to the intranet PC.
    • Optional: Import the CA certificate of the certificate authority trusted by the enterprise and specify the imported CA certificate as the server CA certificate. The FW checks whether the server certificate is trusted based on the server CA certificate.

      Note that over 100 common server CA certificates have been preset on the FW by default, which can be used to verify most server certificates. Generally, these default CA certificates are enough and you do not need to import other CA certificates. In some cases, however, if the preset CA certificates cannot verify the peer server certificates, you need to import other CA certificates. This section describes how to import a CA certificate as a configuration step.

    • Configure the detection profile and SSL-encrypted traffic detection policy.

Procedure

  1. Set the IP address and security zone of the interface.

    1. Choose Network > Interface.

    2. Click for GE0/0/3 and set the parameters as follows:

      Zone

      trust

      IPv4

      IP Address

      10.3.0.1/24
    3. Click OK.

    4. Repeat the previous steps to set the parameters for GE0/0/1.

      Zone

      untrust

      IPv4

      IP Address

      1.1.1.1/24

  2. Configure URL filtering profiles.

    1. Choose Object > Security Profiles > URL Filtering.

    2. In URL Filtering Profile, click Add and set the parameters as follows:

      Name

      url_profile_01

      Default Action

      Allow

      NOTE:

      If you want to deny URLs outside the whitelist, you can set the default action to deny so that the FW uses the default action when the remote query service is unavailable. In this manner, URLs outside the whitelist can be denied.

      If you want to permit URLs outside the blacklist, you can set the default action to permit so that the FW uses the default action when the remote query service is unavailable. In this manner, URLs outside the blacklist can be permitted.

      Whitelist URL

      www.example1.com

      www.example2.com

      Blacklist URL

      www.example3.com

      www.example4.com

      URL Filtering Level

      Select Medium to block the access to all pornographic and illegal websites.
    3. Click OK.

  3. Reference URL filtering profiles in security policies.

    1. Choose Policy > Security Policy > Security Policy.

    2. Click Add Security Policy and set the parameters as follows:

      Name

      policy_sec_01

      Source Zone

      trust

      Destination Zone

      untrust

      Source Address/Region

      10.3.0.1/24

      Action

      permit

      Content Security

      URL Filtering

      url_profile_01
    3. Click OK.

  4. Configure SSL-encrypted traffic detection.
    1. Configure an SSL decryption certificate and import and install the SSL decryption certificate on an intranet PC.

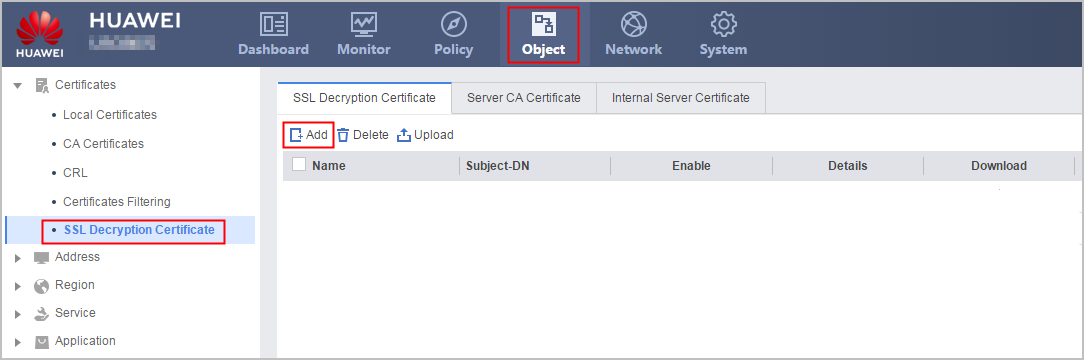

      1. Choose Object > Certificates > SSL Decryption Certificate.

      2. Click the SSL Decryption Certificate tab. Click Add and configure an SSL decryption certificate as follows.

        Certificate Name

        ssl-server-ca

        FQDN

        www.example.com

        Country/Area

        China(CN)

        Locality

        Trust-Network
      3. Click OK.

      4. Click of the SSL decryption certificate and download the SSL decryption certificate to the administrator PC.

        File Format

        Export files in PKCS12 format

        Password/Confirm Password

        Hello@123

        The password specified here is used to protect the key file in the certificate. You are required to enter this password when you install the certificate later.

      5. Click OK.
      6. Send the certificate file that you export to the intranet user and require the user to install the certificate on the PC and trust it. For how to install the trusted certificate, see Installing an SSL Decryption Certificate on a Client. If the certificate is not installed, normal access may be blocked.

    2. Optional: Import the CA certificates of the certificate authorities that the enterprise trusts. Specify the CA certificate used by the FW to verify the server certificate.

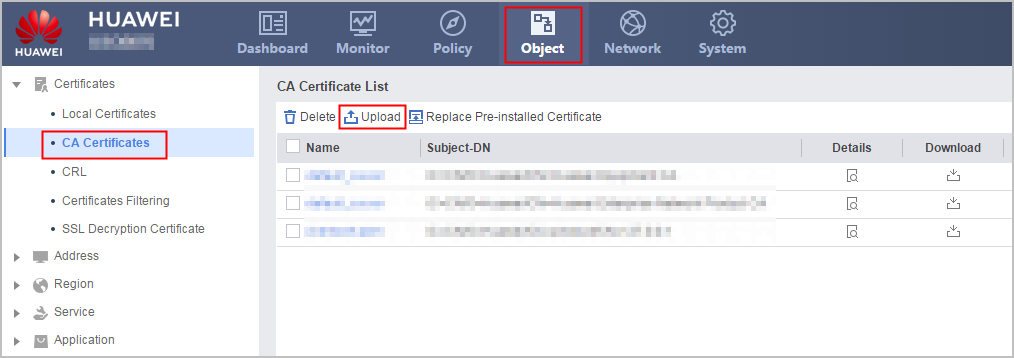

      1. Choose Object > Certificates > CA Certificates.

      2. Click Upload to import a CA certificate.

        Upload Type

        Local Upload

        Certificate File

        server_ca.cer
      3. Click OK.
      4. Choose Object > Certificates > SSL decryption certificate and click the Server CA Certificate tab.
      5. Click Add and select the CA certificate that has been imported into the FW.
      6. Click OK.

    3. Configure the detection profile and SSL-encrypted traffic detection policy.

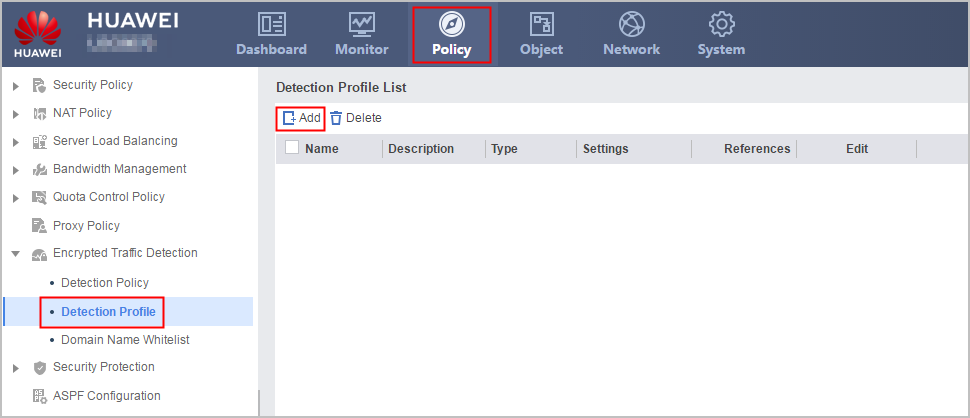

      1. Choose Policy > Encrypted Traffic Detection > Detection Profile.

      2. Click Add and set the following parameters.

        Name

        ssl_profile

        Type

        Outbound
      3. Click OK.

      4. Choose Policy > Encrypted Traffic Detection > Detection Policy.

      5. Click Add and set the following parameters.

        Name

        ssl_policy

        Source Zone

        trust

        Destination Zone

        untrust

        Source Address

        10.3.0.1/24

        Service

        https

        Action

        Decrypt

        Detection Profile

        ssl_profile
      6. Click OK.

  5. Click Save on the upper right of the web page, and click OK in the dialog box that is displayed.
  6. Click Commit on the upper right of the web page, and click OK in the dialog box that is displayed.

Verification

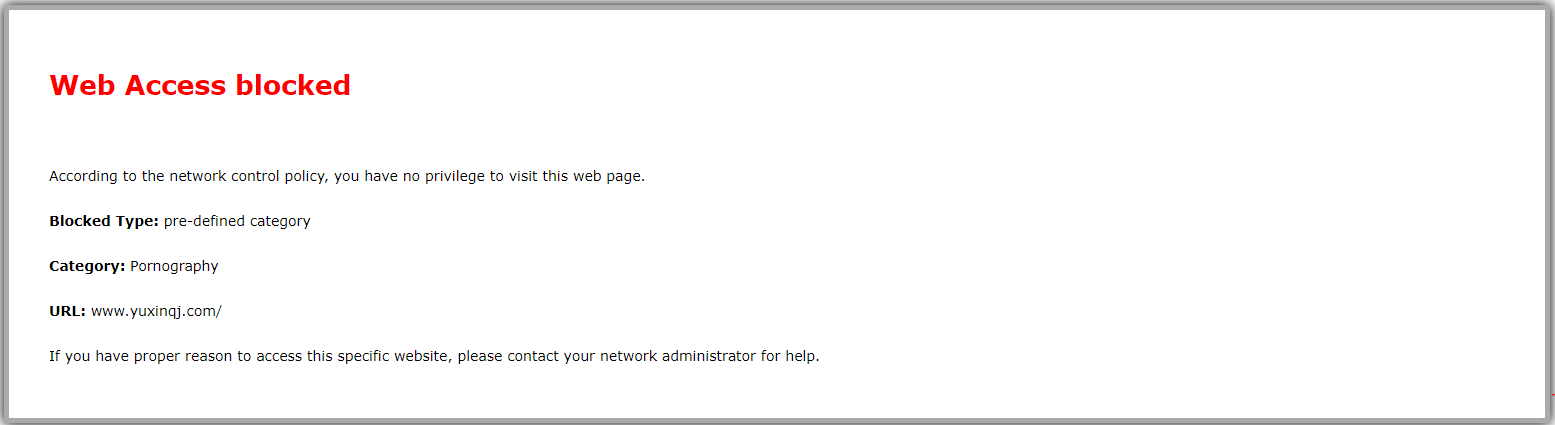

  1. Employees can access most websites, but not pornographic and illegal websites. They received pushed information when their access was blocked. For example:

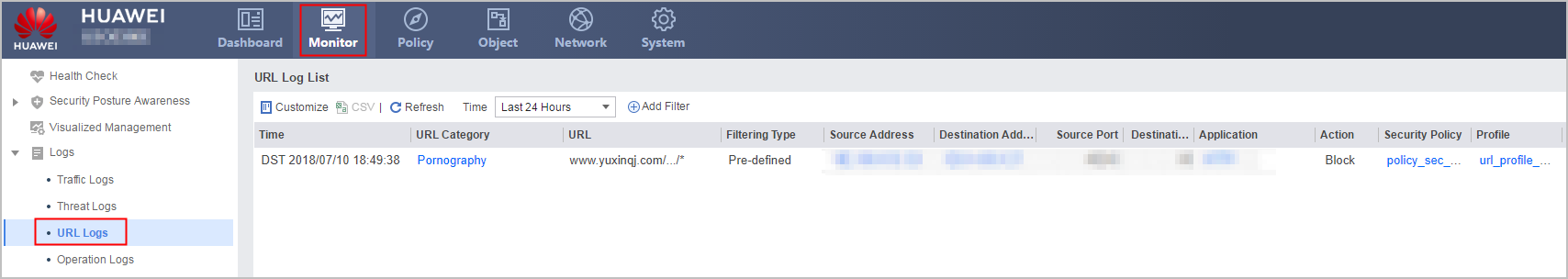

    Choose Monitor > Log > URL Log. You can view the URL logs generated when the FW blocks employee's access to a website, and find that Filtering Type is Predefined. For example:

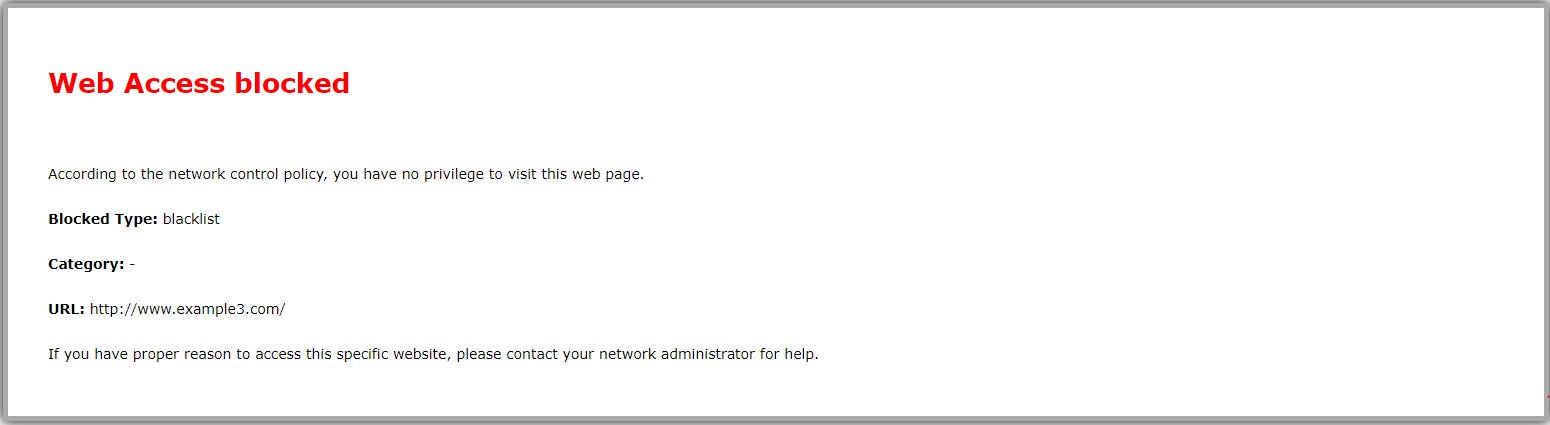

  2. Employees can access www.example1.com and www.example2.com but cannot access www.example3.com or www.example4.com. They received pushed information when their access was blocked. For example:

    Choose Monitor > Log > URL Log. You can view the URL logs generated when the FW blocks employee's access to a website, and find that Filtering Type is Blacklist or Whitelist.

Configuration Scripts

#
 app-proxy built-in-ca trust filename ssl-server-ca
 app-proxy ca trust filename server_ca.cer
#
pki entity ssl-server-ca
 common-name ssl-server-ca
 fqdn www.example.com
 locality Trust Network
 country CN
#
interface GigabitEthernet0/0/1
 undo shutdown
 ip address 1.1.1.1 255.255.255.0
#
interface GigabitEthernet0/0/3
 undo shutdown
 ip address 10.3.0.1 255.255.255.0
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/3
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet0/0/1
#
profile type url-filter name url_profile_01
 add blacklist url www.example3.com
 add blacklist url www.example4.com
 add whitelist url www.example1.com
 add whitelist url www.example2.com
 category pre-defined control-level medium
#
security-policy
 rule name policy_sec_01
  source-zone trust
  destination-zone untrust
  source-address 10.3.0.0 mask 255.255.255.0
  profile url-filter url_profile_01
  action permit
#
profile type decryption name ssl_profile
  detect type outbound
#
decryption-policy
 rule name ssl_policy
  source-zone trust
  destination-zone untrust
  source-address 10.3.0.1 mask 255.255.255.0
  service https
  action decrypt profile ssl_profile
#
return
