Blocking the Access to Sina Microblogs

Faced Problems

As shown in Figure 1, an enterprise deploys the FW as a gateway to connect the intranet to the Internet.

Intranet users access Sina microblogs, affecting the working efficiency and bringing about legal risks (browsing and dissemination of illegitimate information).

Figure 1 Blocking the access to Sina microblogs

Solution

With the application identification function, the FW can identify the traffic sent by intranet users to access Sina microblogs. Set the application to Sina microblog and the action to deny in the security policy to disable intranet users from accessing Sina microblogs.

1. Log in to the web UI of the FW as the administrator.

2. Choose Policy > Security Policy > Security Policy.

3. Click Add, select Add Security Policy. Set matching conditions for the security policy as required and set the action to deny.

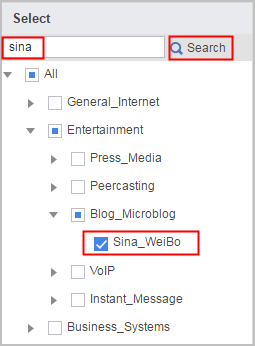

   When setting the application matching condition for the security policy, use keyword sina to rapidly locate and select the application.



   Set security policy parameters as follows:

   Name	policy1
   Source Zone	trust
   Destination Zone	untrust
   Source Address/Region	192.168.0.0/255.255.255.0
   Application	Sina_WeiBo
   Action	Deny

4. Click OK.

Verification

Intranet users cannot access Sina microblogs.

Configuration Scripts

The configuration script related to the example is as follows:

#
security-policy
 rule name policy1
  source-zone trust
  destination-zone untrust
  source-address 192.168.0.0 mask 255.255.255.0
  application app Sina_WeiBo
  action deny
#
