Viewing Traffic Reports in the Cloud Application Dimension

This section describes how to view traffic reports in the cloud application dimension.

You can view the traffic report in the cloud application dimension to obtain the cloud application traffic status and traffic trend of access to a cloud application.

Viewing Reports

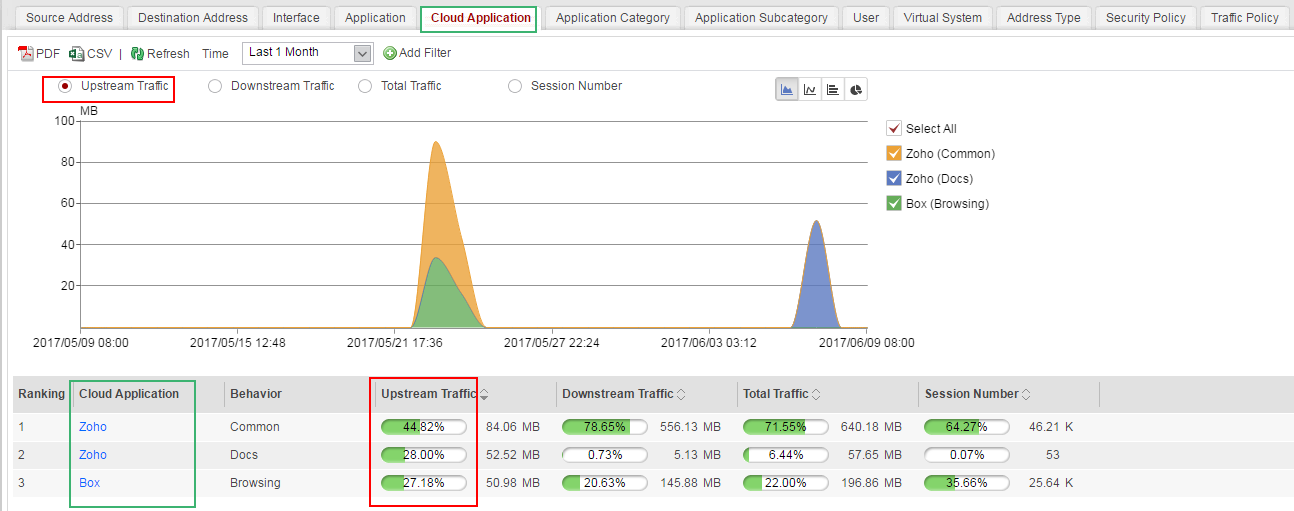

To view the traffic report in the cloud application dimension, click the Cloud Application tab.

Customizing Generated Reports

You can narrow the search range to view traffic statistics in a specific dimension using the advanced search function. To customize generated reports, specify one or more search conditions in Add Filter. Advanced search supports the following search conditions:

Cloud application: specifies the name of a cloud application. Traffic ranking based on the cloud application name is displayed.
Behavior: specifies the application behavior. Cloud application traffic ranking based on the behavior is displayed.
Source address: specifies a source address. Cloud application traffic ranking based on the source address is displayed.
Destination address: specifies a destination address. Cloud application traffic ranking based on the destination address is displayed.
User: specifies a user name. Cloud application traffic ranking based on the user is displayed.

Drilling Traffic Data in the User/Source IP Address Dimension

Only the USG6000E (not including USG6510E/6510E-POE/6530E) support this function.

You can drill the user/source IP address dimension for certain user traffic. To view traffic of a cloud application, you can click a data link.
